FFmpeg总结（十一）用ffmpeg进行转格式，Android下播放网络音频流

时间：2017-05-10 01:03:42      阅读：326      评论：0      收藏：0      [点我收藏+]

标签：jnienv   创建   网络   native   count   i/o   引用   height   tsp

技术分享

图：杭州西湖

思路：
1、mp3转成pcm(音频数据)，ffmpeg做的事
2、OpenSL ES引擎创建AudioPlayer，实际调用了AudioTrack

遇到的错误：
Error #include nested too deeply
原因：c文件互相引用
解决方案：

  • 1、将两个头文件共用的那一部分抽出来单独建一个头文件。

  • 2、加预处理#ifndef.. #define…#endif

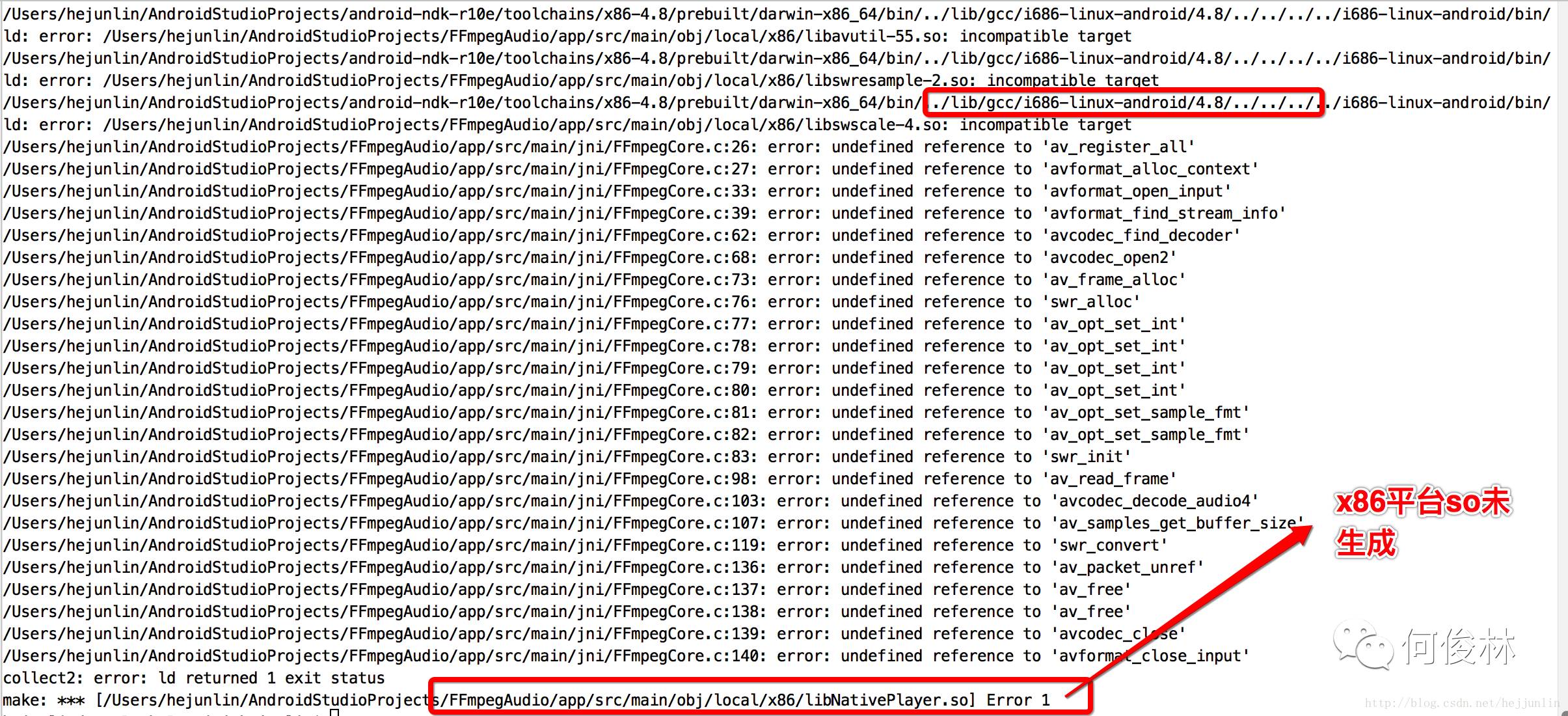

x86平台没有编译出来so，怀疑存在版本不兼容，编译别的相关so，x86下没有异常。有空这里再更新下原因

技术分享

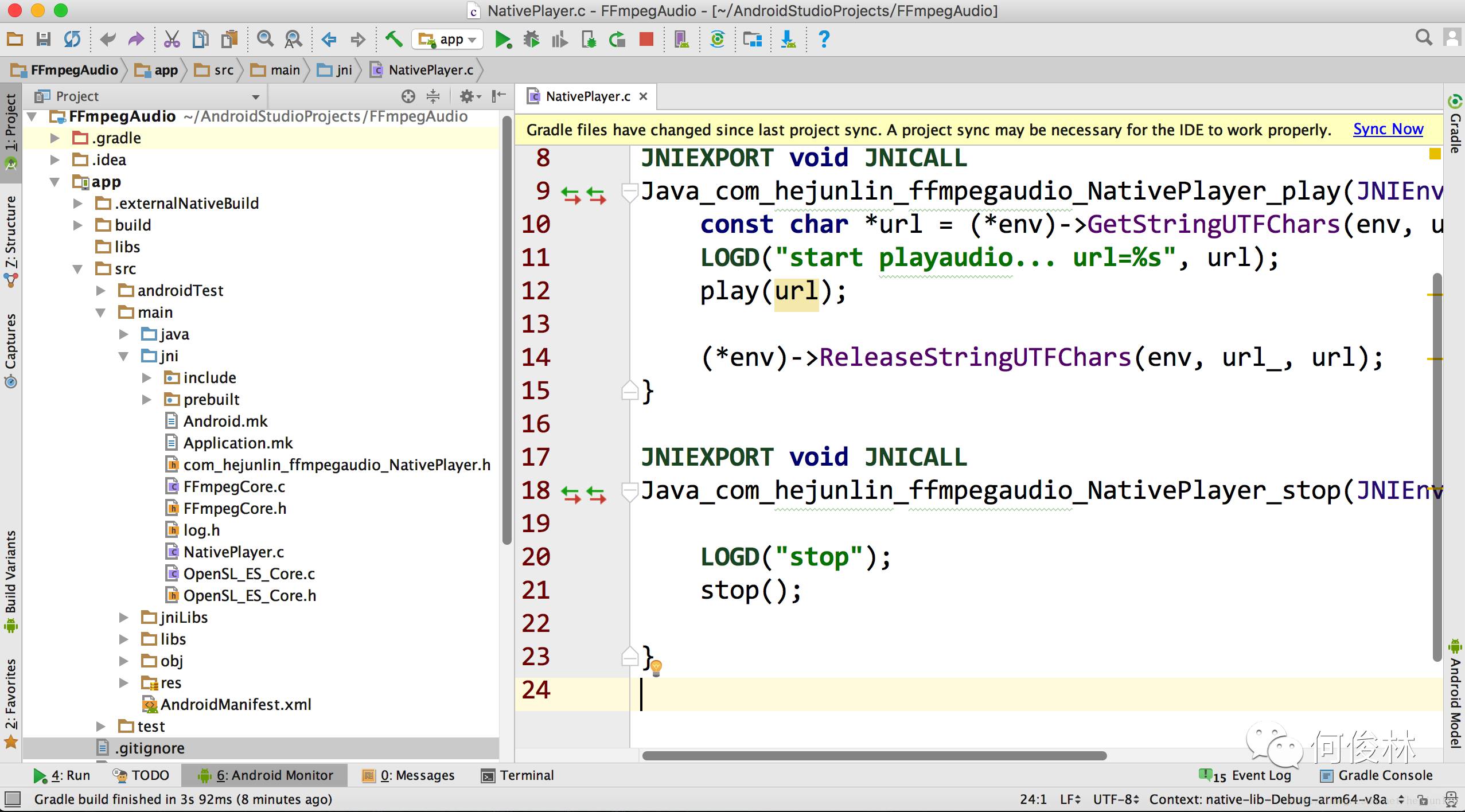

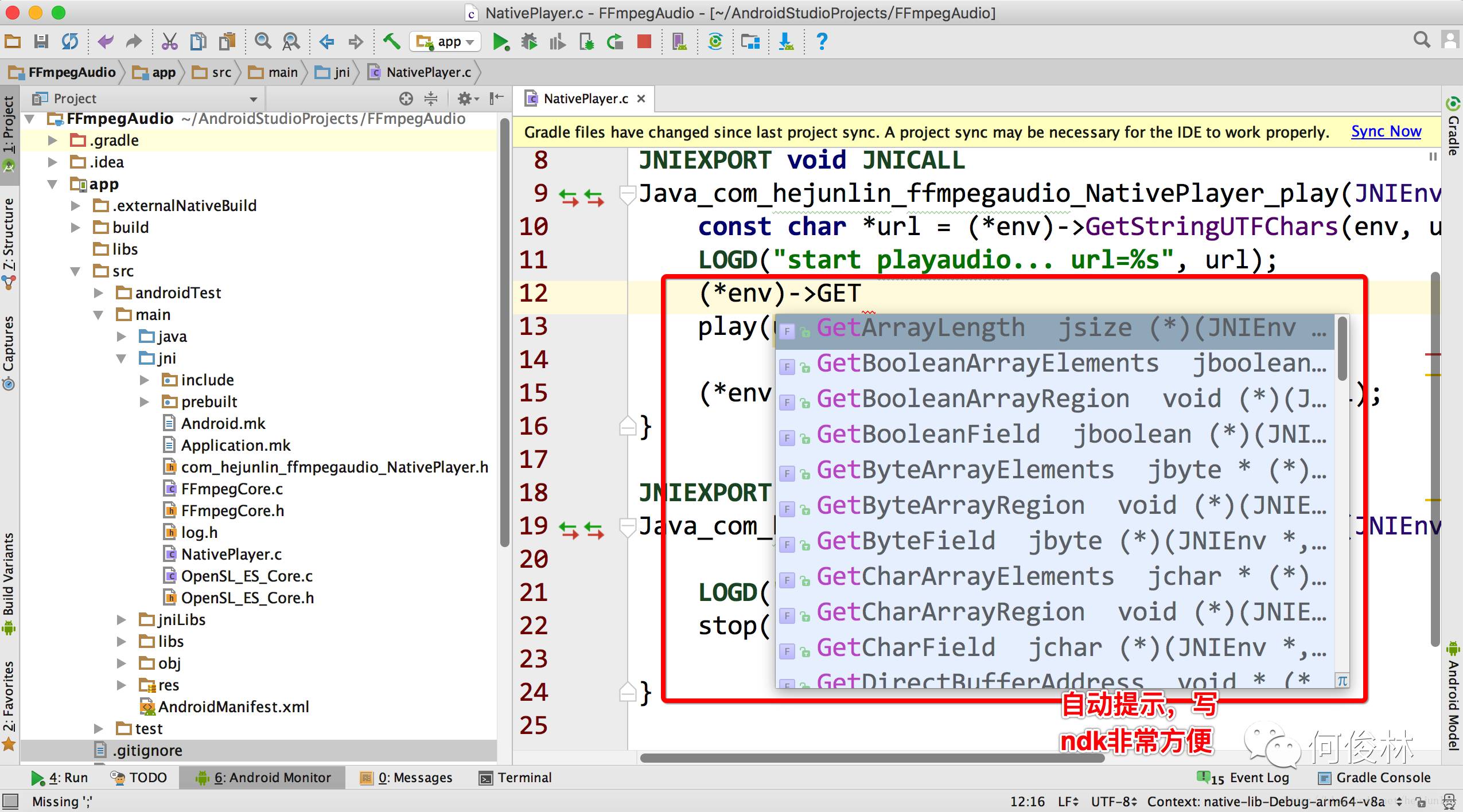

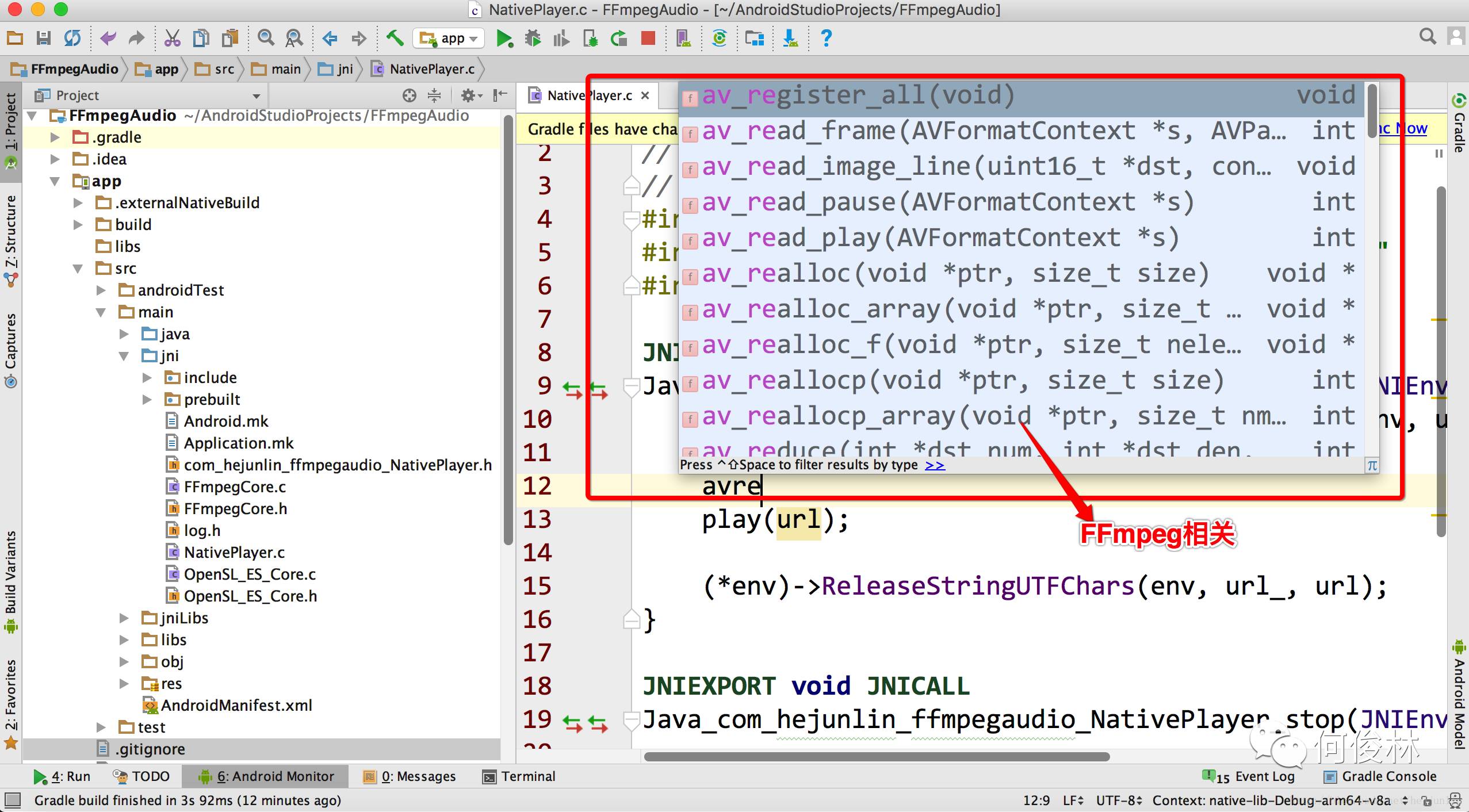

studio写ndk相当方便：

技术分享

技术分享

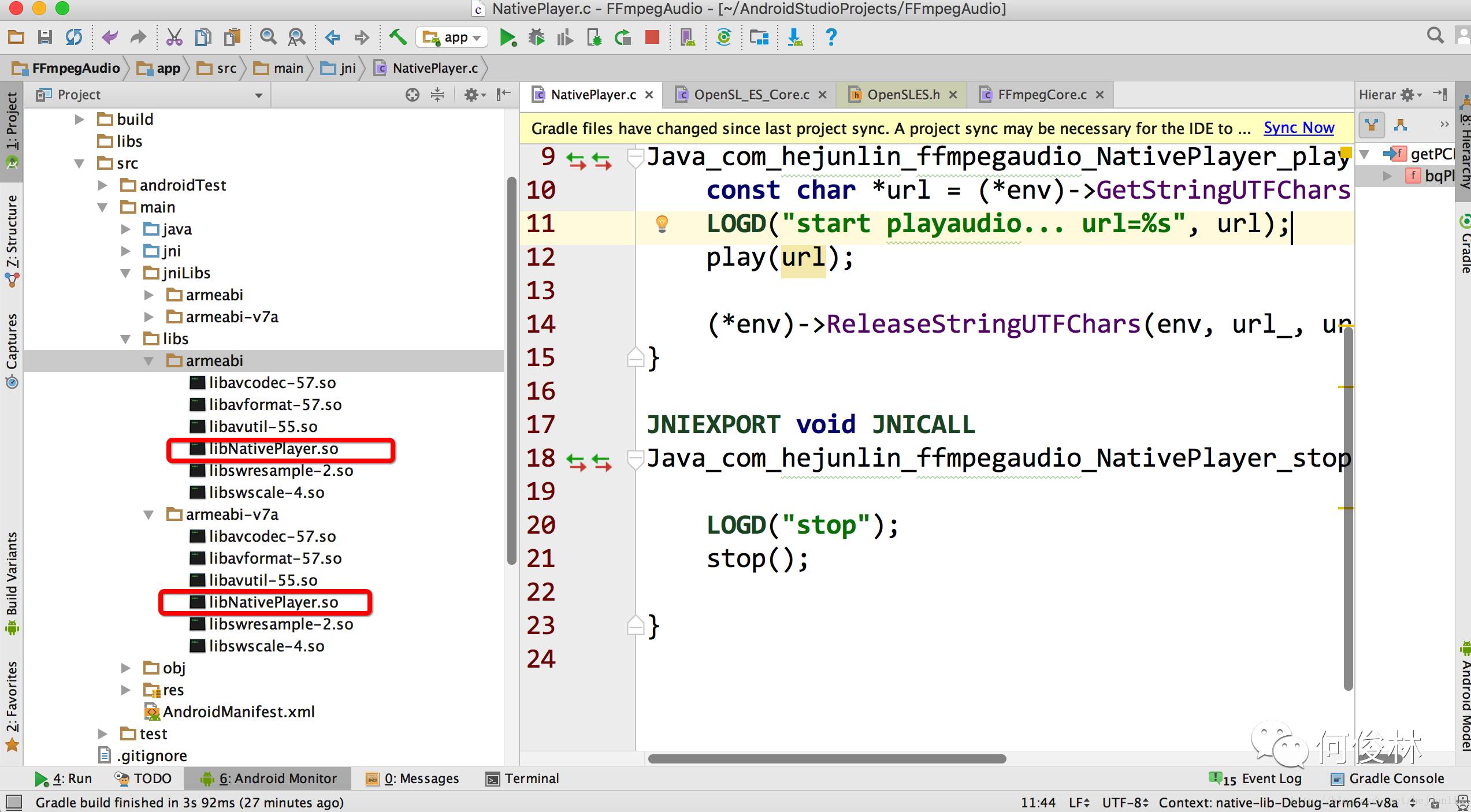

工程结构：

技术分享

Java代码：

  1. package com.hejunlin.ffmpegaudio;

  2.

  3. import android.support.v7.app.AppCompatActivity;

  4. import android.os.Bundle;

  5. import android.view.View;

  6. import android.widget.EditText;

  7. import android.widget.TextView;

  8.

  9. public class MainActivity extends AppCompatActivity {

  10.

  11.    private EditText mInput;

  12.

  13.    @Override

  14.    protected void onCreate(Bundle savedInstanceState) {

  15.        super.onCreate(savedInstanceState);

  16.        setContentView(R.layout.activity_main);

  17.        mInput = (EditText) findViewById(R.id.et_input);

  18.     mInput.setText("http://qzone.60dj.com/huiyuan/201704/19/201704190533197825_35285.mp3");

  19.        findViewById(R.id.bt_play).setOnClickListener(new View.OnClickListener() {

  20.            @Override

  21.            public void onClick(View view) {

  22.                NativePlayer.play(mInput.getText().toString().trim());

  23.            }

  24.        });

  25.        findViewById(R.id.bt_pause).setOnClickListener(new View.OnClickListener() {

  26.            @Override

  27.            public void onClick(View view) {

  28.                NativePlayer.stop();

  29.            }

  30.        });

  31.    }

  32. }



NativePlayer:

  1. package com.hejunlin.ffmpegaudio;

  2.

  3. /**

  4. * Created by hejunlin on 17/5/6.

  5. */

  6.

  7. public class NativePlayer {

  8.

  9.    static {

  10.        System.loadLibrary("NativePlayer");

  11.    }

  12.

  13.    public static native void play(String url);

  14.    public static native void stop();

  15. }

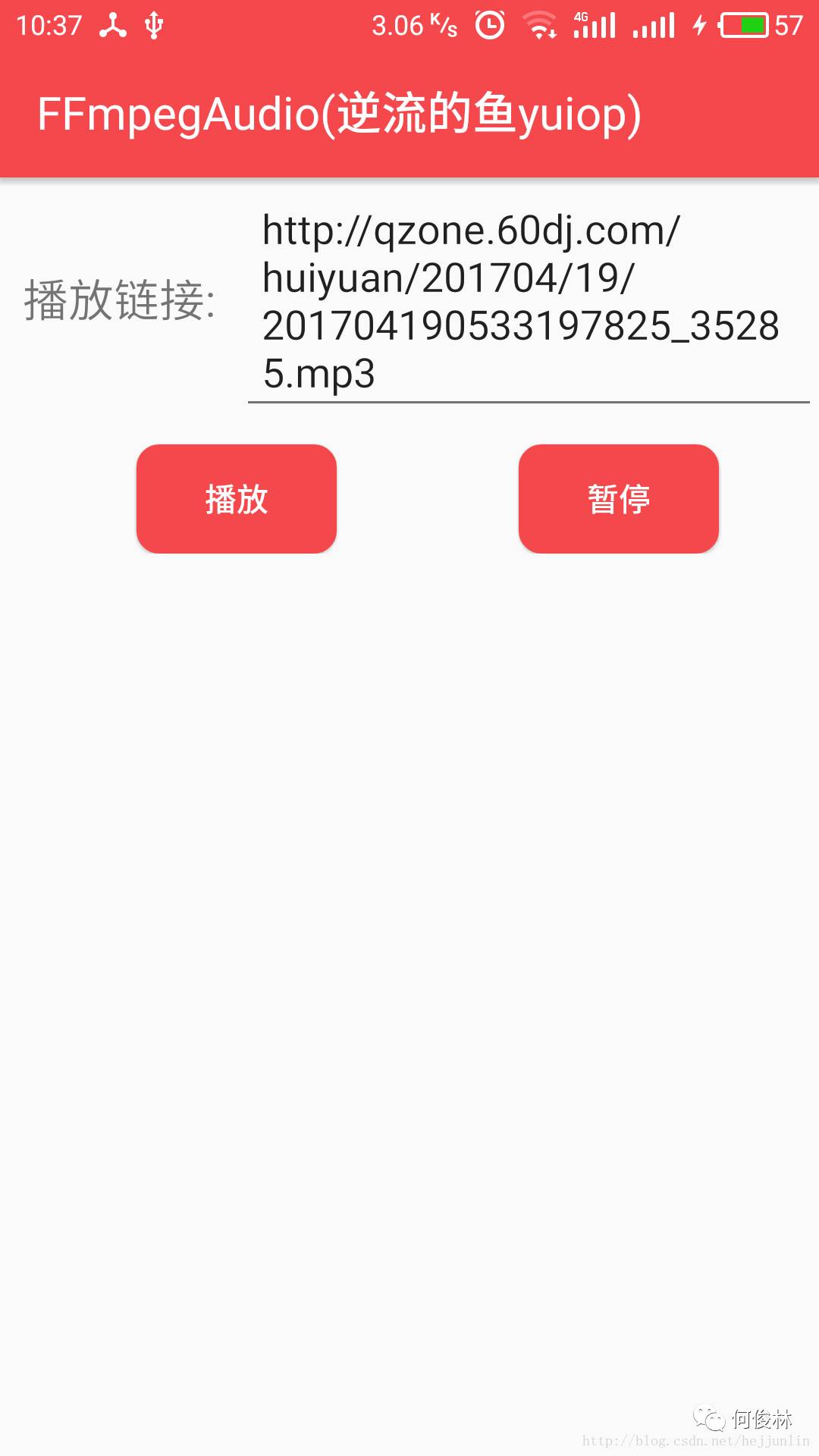

布局文件：

  1. <?xml version="1.0" encoding="utf-8"?>

  2. <RelativeLayout

  3.    xmlns:android="http://schemas.android.com/apk/res/android"

  4.    xmlns:tools="http://schemas.android.com/tools"

  5.    android:id="@+id/activity_main"

  6.    android:layout_width="match_parent"

  7.    android:layout_height="match_parent"

  8.    tools:context="com.hejunlin.ffmpegaudio.MainActivity">

  9.

  10.    <TextView

  11.        android:id="@+id/tv_input"

  12.        android:layout_width="wrap_content"

  13.        android:layout_height="wrap_content"

  14.        android:padding="10dp"

  15.        android:layout_marginTop="30dp"

  16.        android:text="播放链接:"

  17.        android:textSize="20sp"/>

  18.

  19.    <EditText

  20.        android:id="@+id/et_input"

  21.        android:layout_width="match_parent"

  22.        android:layout_height="wrap_content"

  23.        android:layout_toRightOf="@id/tv_input"

  24.        android:padding="10dp"/>

  25.

  26.    <LinearLayout

  27.        android:layout_width="match_parent"

  28.        android:layout_height="wrap_content"

  29.        android:layout_below="@id/et_input"

  30.        android:orientation="horizontal">

  31.

  32.

  33.        <Button

  34.            android:id="@+id/bt_play"

  35.            android:layout_width="wrap_content"

  36.            android:layout_height="wrap_content"

  37.            android:layout_marginTop="10dp"

  38.            android:layout_marginLeft="60dp"

  39.            android:background="@drawable/button_shape"

  40.            android:textColor="@color/white"

  41.            android:text="播放" />

  42.

  43.        <Button

  44.            android:id="@+id/bt_pause"

  45.            android:layout_width="wrap_content"

  46.            android:layout_height="wrap_content"

  47.            android:layout_marginTop="10dp"

  48.            android:background="@drawable/button_shape"

  49.            android:textColor="@color/white"

  50.            android:layout_marginLeft="80dp"

  51.            android:text="暂停" />

  52.    </LinearLayout>

  53.

  54. </RelativeLayout>

jni相关代码： OpenSLESCore.c

  1. //

  2. // Created by hejunlin on 17/5/6.

  3. //

  4.

  5. #include "OpenSL_ES_Core.h"

  6. #include "FFmpegCore.h"

  7. #include <assert.h>

  8. #include <jni.h>

  9. #include <string.h>

  10.

  11. #include <SLES/OpenSLES.h>

  12. #include <SLES/OpenSLES_Android.h>

  13.

  14. // for native asset manager

  15. #include <sys/types.h>

  16. #include <android/asset_manager.h>

  17. #include <android/asset_manager_jni.h>

  18. #include "log.h"

  19.

  20. // engine interfaces

  21. static SLObjectItf engineObject = NULL;

  22. static SLEngineItf engineEngine;

  23.

  24. // output mix interfaces

  25. static SLObjectItf outputMixObject = NULL;

  26. static SLEnvironmentalReverbItf outputMixEnvironmentalReverb = NULL;

  27.

  28. // buffer queue player interfaces

  29. static SLObjectItf bqPlayerObject = NULL;

  30. static SLPlayItf bqPlayerPlay;

  31. static SLAndroidSimpleBufferQueueItf bqPlayerBufferQueue;

  32. static SLEffectSendItf bqPlayerEffectSend;

  33. static SLMuteSoloItf bqPlayerMuteSolo;

  34. static SLVolumeItf bqPlayerVolume;

  35.

  36. // aux effect on the output mix, used by the buffer queue player

  37. static const SLEnvironmentalReverbSettings reverbSettings =

  38.        SL_I3DL2_ENVIRONMENT_PRESET_STONECORRIDOR;

  39.

  40. static void *buffer;

  41. static size_t bufferSize;

  42.

  43. // this callback handler is called every time a buffer finishes playing

  44. void bqPlayerCallback(SLAndroidSimpleBufferQueueItf bq, void *context)

  45. {

  46.    LOGD(">> buffere queue callback");

  47.    assert(bq == bqPlayerBufferQueue);

  48.    bufferSize = 0;

  49.    //assert(NULL == context);

  50.    getPCM(&buffer, &bufferSize);

  51.    // for streaming playback, replace this test by logic to find and fill the next buffer

  52.    if (NULL != buffer && 0 != bufferSize) {

  53.        SLresult result;

  54.        // enqueue another buffer

  55.        result = (*bqPlayerBufferQueue)->Enqueue(bqPlayerBufferQueue, buffer,

  56.                                                 bufferSize);

  57.        // the most likely other result is SL_RESULT_BUFFER_INSUFFICIENT,

  58.        // which for this code example would indicate a programming error

  59.        assert(SL_RESULT_SUCCESS == result);

  60.

  61.        (void)result;

  62.    }

  63. }

  64.

  65. void initOpenSLES()

  66. {

  67.    LOGD(">> initOpenSLES...");

  68.    SLresult result;

  69.

  70.    // 1、create engine

  71.    result = slCreateEngine(&engineObject, 0, NULL, 0, NULL, NULL);

  72.    LOGD(">> initOpenSLES... step 1, result = %d", result);

  73.

  74.    // 2、realize the engine

  75.    result = (*engineObject)->Realize(engineObject, SL_BOOLEAN_FALSE);

  76.    LOGD(">> initOpenSLES...step 2, result = %d", result);

  77.

  78.    // 3、get the engine interface, which is needed in order to create other objects

  79.    result = (*engineObject)->GetInterface(engineObject, SL_IID_ENGINE, &engineEngine);

  80.    LOGD(">> initOpenSLES...step 3, result = %d", result);

  81.

  82.    // 4、create output mix, with environmental reverb specified as a non-required interface

  83.    const SLInterfaceID ids[1] = {SL_IID_ENVIRONMENTALREVERB};

  84.    const SLboolean req[1] = {SL_BOOLEAN_FALSE};

  85.    result = (*engineEngine)->CreateOutputMix(engineEngine, &outputMixObject, 0, 0, 0);

  86.    LOGD(">> initOpenSLES...step 4, result = %d", result);

  87.

  88.    // 5、realize the output mix

  89.    result = (*outputMixObject)->Realize(outputMixObject, SL_BOOLEAN_FALSE);

  90.    LOGD(">> initOpenSLES...step 5, result = %d", result);

  91.

  92.    // 6、get the environmental reverb interface

  93.    // this could fail if the environmental reverb effect is not available,

  94.    // either because the feature is not present, excessive CPU load, or

  95.    // the required MODIFY_AUDIO_SETTINGS permission was not requested and granted

  96.    result = (*outputMixObject)->GetInterface(outputMixObject, SL_IID_ENVIRONMENTALREVERB,

  97.                                              &outputMixEnvironmentalReverb);

  98.    if (SL_RESULT_SUCCESS == result) {

  99.        result = (*outputMixEnvironmentalReverb)->SetEnvironmentalReverbProperties(

  100.                outputMixEnvironmentalReverb, &reverbSettings);

  101.        LOGD(">> initOpenSLES...step 6, result = %d", result);

  102.    }

  103.

  104. }

  105.

  106. // init buffer queue

  107. void initBufferQueue(int rate, int channel, int bitsPerSample)

  108. {

  109.    LOGD(">> initBufferQueue");

  110.    SLresult result;

  111.

  112.    // configure audio source

  113.    SLDataLocator_AndroidSimpleBufferQueue loc_bufq = {SL_DATALOCATOR_ANDROIDSIMPLEBUFFERQUEUE, 2};

  114.    SLDataFormat_PCM format_pcm;

  115.    format_pcm.formatType = SL_DATAFORMAT_PCM;

  116.    format_pcm.numChannels = channel;

  117.    format_pcm.samplesPerSec = rate * 1000;

  118.    format_pcm.bitsPerSample = bitsPerSample;

  119.    format_pcm.containerSize = 16;

  120.    if (channel == 2)

  121.        format_pcm.channelMask = SL_SPEAKER_FRONT_LEFT | SL_SPEAKER_FRONT_RIGHT;

  122.    else

  123.        format_pcm.channelMask = SL_SPEAKER_FRONT_CENTER;

  124.    format_pcm.endianness = SL_BYTEORDER_LITTLEENDIAN;

  125.    SLDataSource audioSrc = {&loc_bufq, &format_pcm};

  126.

  127.    // configure audio sink

  128.    SLDataLocator_OutputMix loc_outmix = {SL_DATALOCATOR_OUTPUTMIX, outputMixObject};

  129.    SLDataSink audioSnk = {&loc_outmix, NULL};

  130.

  131.    // create audio player

  132.    const SLInterfaceID ids[3] = {SL_IID_BUFFERQUEUE, SL_IID_EFFECTSEND,

  133.            /*SL_IID_MUTESOLO,*/ SL_IID_VOLUME};

  134.    const SLboolean req[3] = {SL_BOOLEAN_TRUE, SL_BOOLEAN_TRUE,

  135.            /*SL_BOOLEAN_TRUE,*/ SL_BOOLEAN_TRUE};

  136.    result = (*engineEngine)->CreateAudioPlayer(engineEngine, &bqPlayerObject, &audioSrc, &audioSnk,

  137.                                                3, ids, req);

  138.    assert(SL_RESULT_SUCCESS == result);

  139.    (void)result;

  140.

  141.    // realize the player

  142.    result = (*bqPlayerObject)->Realize(bqPlayerObject, SL_BOOLEAN_FALSE);

  143.    assert(SL_RESULT_SUCCESS == result);

  144.    (void)result;

  145.

  146.    // get the play interface

  147.    result = (*bqPlayerObject)->GetInterface(bqPlayerObject, SL_IID_PLAY, &bqPlayerPlay);

  148.    assert(SL_RESULT_SUCCESS == result);

  149.    (void)result;

  150.

  151.    // get the buffer queue interface

  152.    result = (*bqPlayerObject)->GetInterface(bqPlayerObject, SL_IID_BUFFERQUEUE,

  153.                                             &bqPlayerBufferQueue);

  154.    assert(SL_RESULT_SUCCESS == result);

  155.    (void)result;

  156.

  157.    // register callback on the buffer queue

  158.    result = (*bqPlayerBufferQueue)->RegisterCallback(bqPlayerBufferQueue, bqPlayerCallback, NULL);

  159.    assert(SL_RESULT_SUCCESS == result);

  160.    (void)result;

  161.

  162.    // get the effect send interface

  163.    result = (*bqPlayerObject)->GetInterface(bqPlayerObject, SL_IID_EFFECTSEND,

  164.                                             &bqPlayerEffectSend);

  165.    assert(SL_RESULT_SUCCESS == result);

  166.    (void)result;

  167.

  168.    // get the volume interface

  169.    result = (*bqPlayerObject)->GetInterface(bqPlayerObject, SL_IID_VOLUME, &bqPlayerVolume);

  170.    assert(SL_RESULT_SUCCESS == result);

  171.    (void)result;

  172.

  173.    // set the player‘s state to playing

  174.    result = (*bqPlayerPlay)->SetPlayState(bqPlayerPlay, SL_PLAYSTATE_PLAYING);

  175.    assert(SL_RESULT_SUCCESS == result);

  176.    (void)result;

  177. }

  178.

  179. // stop the native audio system

  180. void stop()

  181. {

  182.    // destroy buffer queue audio player object, and invalidate all associated interfaces

  183.    if (bqPlayerObject != NULL) {

  184.        (*bqPlayerObject)->Destroy(bqPlayerObject);

  185.        bqPlayerObject = NULL;

  186.        bqPlayerPlay = NULL;

  187.        bqPlayerBufferQueue = NULL;

  188.        bqPlayerEffectSend = NULL;

  189.        bqPlayerMuteSolo = NULL;

  190.        bqPlayerVolume = NULL;

  191.    }

  192.

  193.    // destroy output mix object, and invalidate all associated interfaces

  194.    if (outputMixObject != NULL) {

  195.        (*outputMixObject)->Destroy(outputMixObject);

  196.        outputMixObject = NULL;

  197.        outputMixEnvironmentalReverb = NULL;

  198.    }

  199.

  200.    // destroy engine object, and invalidate all associated interfaces

  201.    if (engineObject != NULL) {

  202.        (*engineObject)->Destroy(engineObject);

  203.        engineObject = NULL;

  204.        engineEngine = NULL;

  205.    }

  206.

  207.    // 释放FFmpeg解码器

  208.    releaseFFmpeg();

  209. }

  210.

  211. void play(char *url)

  212. {

  213.    int rate, channel;

  214.    LOGD("...get url=%s", url);

  215.    // 1、初始化FFmpeg解码器

  216.    initFFmpeg(&rate, &channel, url);

  217.

  218.    // 2、初始化OpenSLES

  219.    initOpenSLES();

  220.

  221.    // 3、初始化BufferQueue

  222.    initBufferQueue(rate, channel, SL_PCMSAMPLEFORMAT_FIXED_16);

  223.

  224.    // 4、启动音频播放

  225.    bqPlayerCallback(bqPlayerBufferQueue, NULL);

  226. }



FFmpegCore.c

  1. #include "log.h"

  2. #include "FFmpegCore.h"

  3. #include "libavcodec/avcodec.h"

  4. #include "libavformat/avformat.h"

  5. #include "libswscale/swscale.h"

  6. #include "libswresample/swresample.h"

  7. #include "libavutil/samplefmt.h"

  8. #include <SLES/OpenSLES.h>

  9. #include <SLES/OpenSLES_Android.h>

  10.

  11. uint8_t *outputBuffer;

  12. size_t outputBufferSize;

  13.

  14. AVPacket packet;

  15. int audioStream;

  16. AVFrame *aFrame;

  17. SwrContext *swr;

  18. AVFormatContext *aFormatCtx;

  19. AVCodecContext *aCodecCtx;

  20.

  21. int initFFmpeg(int *rate, int *channel, char *url) {

  22.

  23.    av_register_all();

  24.    aFormatCtx = avformat_alloc_context();

  25.    LOGD("ffmpeg get url=:%s", url);

  26.    // 网络音频流

  27.    char *file_name = url;

  28.

  29.    // Open audio file

  30.    if (avformat_open_input(&aFormatCtx, file_name, NULL, NULL) != 0) {

  31.        LOGE("Couldn‘t open file:%s\n", file_name);

  32.        return -1; // Couldn‘t open file

  33.    }

  34.

  35.    // Retrieve stream information

  36.    if (avformat_find_stream_info(aFormatCtx, NULL) < 0) {

  37.        LOGE("Couldn‘t find stream information.");

  38.        return -1;

  39.    }

  40.

  41.    // Find the first audio stream

  42.    int i;

  43.    audioStream = -1;

  44.    for (i = 0; i < aFormatCtx->nb_streams; i++) {

  45.        if (aFormatCtx->streams[i]->codec->codec_type == AVMEDIA_TYPE_AUDIO &&

  46.            audioStream < 0) {

  47.            audioStream = i;

  48.        }

  49.    }

  50.    if (audioStream == -1) {

  51.        LOGE("Couldn‘t find audio stream!");

  52.        return -1;

  53.    }

  54.

  55.    // Get a pointer to the codec context for the video stream

  56.    aCodecCtx = aFormatCtx->streams[audioStream]->codec;

  57.

  58.    // Find the decoder for the audio stream

  59.    AVCodec *aCodec = avcodec_find_decoder(aCodecCtx->codec_id);

  60.    if (!aCodec) {

  61.        fprintf(stderr, "Unsupported codec!\n");

  62.        return -1;

  63.    }

  64.

  65.    if (avcodec_open2(aCodecCtx, aCodec, NULL) < 0) {

  66.        LOGE("Could not open codec.");

  67.        return -1; // Could not open codec

  68.    }

  69.

  70.    aFrame = av_frame_alloc();

  71.

  72.    // 设置格式转换

  73.    swr = swr_alloc();

  74.    av_opt_set_int(swr, "in_channel_layout",  aCodecCtx->channel_layout, 0);

  75.    av_opt_set_int(swr, "out_channel_layout", aCodecCtx->channel_layout,  0);

  76.    av_opt_set_int(swr, "in_sample_rate",     aCodecCtx->sample_rate, 0);

  77.    av_opt_set_int(swr, "out_sample_rate",    aCodecCtx->sample_rate, 0);

  78.    av_opt_set_sample_fmt(swr, "in_sample_fmt",  aCodecCtx->sample_fmt, 0);

  79.    av_opt_set_sample_fmt(swr, "out_sample_fmt", AV_SAMPLE_FMT_S16,  0);

  80.    swr_init(swr);

  81.

  82.    // 分配PCM数据缓存

  83.    outputBufferSize = 8196;

  84.    outputBuffer = (uint8_t *) malloc(sizeof(uint8_t) * outputBufferSize);

  85.

  86.    // 返回sample rate和channels

  87.    *rate = aCodecCtx->sample_rate;

  88.    *channel = aCodecCtx->channels;

  89.    return 0;

  90. }

  91.

  92. // 获取PCM数据, 自动回调获取

  93. int getPCM(void **pcm, size_t *pcmSize) {

  94.    LOGD(">> getPcm");

  95.    while (av_read_frame(aFormatCtx, &packet) >= 0) {

  96.

  97.        int frameFinished = 0;

  98.        // Is this a packet from the audio stream?

  99.        if (packet.stream_index == audioStream) {

  100.            avcodec_decode_audio4(aCodecCtx, aFrame, &frameFinished, &packet);

  101.

  102.            if (frameFinished) {

  103.                // data_size为音频数据所占的字节数

  104.                int data_size = av_samples_get_buffer_size(

  105.                        aFrame->linesize, aCodecCtx->channels,

  106.                        aFrame->nb_samples, aCodecCtx->sample_fmt, 1);

  107.                LOGD(">> getPcm data_size=%d", data_size);

  108.                // 这里内存再分配可能存在问题

  109.                if (data_size > outputBufferSize) {

  110.                    outputBufferSize = data_size;

  111.                    outputBuffer = (uint8_t *) realloc(outputBuffer,

  112.                                                       sizeof(uint8_t) * outputBufferSize);

  113.                }

  114.

  115.                // 音频格式转换

  116.                swr_convert(swr, &outputBuffer, aFrame->nb_samples,

  117.                            (uint8_t const **) (aFrame->extended_data),

  118.                        aFrame->nb_samples);

  119.

  120.                // 返回pcm数据

  121.                *pcm = outputBuffer;

  122.                *pcmSize = data_size;

  123.                return 0;

  124.            }

  125.        }

  126.    }

  127.    return -1;

  128. }

  129.

  130. // 释放相关资源

  131. int releaseFFmpeg()

  132. {

  133.    av_packet_unref(&packet);

  134.    av_free(outputBuffer);

  135.    av_free(aFrame);

  136.    avcodec_close(aCodecCtx);

  137.    avformat_close_input(&aFormatCtx);

  138.    return 0;

NativePlayer.c

  1. //

  2. // Created by hejunlin on 17/5/6.

  3. //

  4. #include "log.h"

  5. #include "com_hejunlin_ffmpegaudio_NativePlayer.h"

  6. #include "OpenSL_ES_Core.h"

  7.

  8. JNIEXPORT void JNICALL

  9. Java_com_hejunlin_ffmpegaudio_NativePlayer_play(JNIEnv *env, jclass type, jstring url_) {

  10.    const char *url = (*env)->GetStringUTFChars(env, url_, 0);

  11.    LOGD("start playaudio... url=%s", url);

  12.

  13.    play(url);

  14.    (*env)->ReleaseStringUTFChars(env, url_, url);

  15. }

  16.

  17. JNIEXPORT void JNICALL

  18. Java_com_hejunlin_ffmpegaudio_NativePlayer_stop(JNIEnv *env, jclass type) {

  19.

  20.    LOGD("stop");

  21.    stop();

  22. }

通过cmake，或ndk-build都可以编译，会生成一个NativePlayer.so

技术分享

效果图：

技术分享

log输出如下：

    1. 05-07 10:14:04.573 D/Surface: Surface::setBuffersDimensions(this=0xf45b6300,w=1080,h=1920)

    2. 05-07 10:14:04.577 W/linker: libNativePlayer.so: unused DT entry: type 0x6ffffffe arg 0x1414

    3. 05-07 10:14:04.577 W/linker: libNativePlayer.so: unused DT entry: type 0x6fffffff arg 0x4

    4. 05-07 10:14:04.578 W/linker: libavcodec-57.so: unused DT entry: type 0x6ffffffe arg 0x5da4

    5. 05-07 10:14:04.578 W/linker: libavcodec-57.so: unused DT entry: type 0x6fffffff arg 0x2

    6. 05-07 10:14:04.578 W/linker: libavformat-57.so: unused DT entry: type 0x6ffffffe arg 0x6408

    7. 05-07 10:14:04.578 W/linker: libavformat-57.so: unused DT entry: type 0x6fffffff arg 0x2

    8. 05-07 10:14:04.578 W/linker: libswresample-2.so: unused DT entry: type 0x6ffffffe arg 0xcd4

    9. 05-07 10:14:04.578 W/linker: libswresample-2.so: unused DT entry: type 0x6fffffff arg 0x1

    10. 05-07 10:14:04.578 W/linker: libswscale-4.so: unused DT entry: type 0x6ffffffe arg 0xd70

    11. 05-07 10:14:04.578 W/linker: libswscale-4.so: unused DT entry: type 0x6fffffff arg 0x1

    12. 05-07 10:14:04.589 D//Users/hejunlin/AndroidStudioProjects/FFmpegAudio/app/src/main/jni/NativePlayer.c: Java_com_hejunlin_ffmpegaudio_NativePlayer_play:start playaudio... url=http://qzone.60dj.com/huiyuan/201704/19/201704190533197825_35285.mp3

    13. 05-07 10:14:04.589 D//Users/hejunlin/AndroidStudioProjects/FFmpegAudio/app/src/main/jni/OpenSL_ES_Core.c: play:...get url=http://qzone.60dj.com/huiyuan/201704/19/201704190533197825_35285.mp3

    14. 05-07 10:14:04.590 D//Users/hejunlin/AndroidStudioProjects/FFmpegAudio/app/src/main/jni/FFmpegCore.c: initFFmpeg:ffmpeg get url=:http://qzone.60dj.com/huiyuan/201704/19/201704190533197825_35285.mp3

    15. 05-07 10:14:04.696 D/libc-netbsd: getaddrinfo: qzone.60dj.com get result from proxy >>

    16. 05-07 10:14:04.949 D//Users/hejunlin/AndroidStudioProjects/FFmpegAudio/app/src/main/jni/OpenSL_ES_Core.c: initOpenSLES:>> initOpenSLES...

    17. 05-07 10:14:04.950 D//Users/hejunlin/AndroidStudioProjects/FFmpegAudio/app/src/main/jni/OpenSL_ES_Core.c: initOpenSLES:>> initOpenSLES... step 1, result = 0

    18. 05-07 10:14:04.950 D//Users/hejunlin/AndroidStudioProjects/FFmpegAudio/app/src/main/jni/OpenSL_ES_Core.c: initOpenSLES:>> initOpenSLES...step 2, result = 0

    19. 05-07 10:14:04.950 D//Users/hejunlin/AndroidStudioProjects/FFmpegAudio/app/src/main/jni/OpenSL_ES_Core.c: initOpenSLES:>> initOpenSLES...step 3, result = 0

    20. 05-07 10:14:04.950 D//Users/hejunlin/AndroidStudioProjects/FFmpegAudio/app/src/main/jni/OpenSL_ES_Core.c: initOpenSLES:>> initOpenSLES...step 4, result = 0

    21. 05-07 10:14:04.950 D//Users/hejunlin/AndroidStudioProjects/FFmpegAudio/app/src/main/jni/OpenSL_ES_Core.c: initOpenSLES:>> initOpenSLES...step 5, result = 0

    22. 05-07 10:14:04.950 W/libOpenSLES: Leaving Object::GetInterface (SL_RESULT_FEATURE_UNSUPPORTED)

    23. 05-07 10:14:04.950 D//Users/hejunlin/AndroidStudioProjects/FFmpegAudio/app/src/main/jni/OpenSL_ES_Core.c: initBufferQueue:>> initBufferQueue

    24. 05-07 10:14:04.951 V/AudioTrack: set(): streamType 3, sampleRate 44100, format 0x1, channelMask 0x3, frameCount 0, flags #0, notificationFrames 0, sessionId 774, transferType 0

    25. 05-07 10:14:04.951 V/AudioTrack: set() streamType 3 frameCount 0 flags 0000

    26. 05-07 10:14:04.951 D/AudioTrack: audiotrack 0xf459cd80 set Type 3, rate 44100, fmt 1, chn 3, fcnt 0, flags 0000

    27. 05-07 10:14:04.951 D/AudioTrack: mChannelMask 0x3

    28. 05-07 10:14:04.953 V/AudioTrack: createTrack_l() output 2 afLatency 21

    29. 05-07 10:14:04.953 V/AudioTrack: afFrameCount=1024, minBufCount=1, afSampleRate=48000, afLatency=21

    30. 05-07 10:14:04.953 V/AudioTrack: minFrameCount: 2822, afFrameCount=1024, minBufCount=3, sampleRate=44100, afSampleRate=48000, afLatency=21

    31. 05-07 10:14:04.954 D/AudioTrackCenter: addTrack, trackId:0xdaf0c000, frameCount:2822, sampleRate:44100, trackPtr:0xf459cd80

    32. 05-07 10:14:04.954 D/AudioTrackCenter: mAfSampleRate 48000, sampleRate 44100, AfFrameCount 1024 , mAfSampleRate 48000, frameCount 2822

    33. 05-07 10:14:04.979 D//Users/hejunlin/AndroidStudioProjects/FFmpegAudio/app/src/main/jni/OpenSL_ES_Core.c: bqPlayerCallback:>> buffere queue callback

    34. 05-07 10:14:04.979 D//Users/hejunlin/AndroidStudioProjects/FFmpegAudio/app/src/main/jni/FFmpegCore.c: getPCM:>> getPcm

    35. 05-07 10:14:04.979 D/AudioTrackShared: front(0x0), mIsOut 1, avail 2822, mFrameCount 2822, filled 0

    36. 05-07 10:14:04.979 V/AudioTrack: obtainBuffer(940) returned 2822 = 940 + 1882 err 0

    37. 05-07 10:14:04.979 D/AudioTrackShared: front(0x0), mIsOut 1, interrupt() FUTEX_WAKE

    38. 05-07 10:14:04.979 D/AudioTrack: audiotrack 0xf459cd80 stop done

    39. 05-07 10:14:04.980 D//Users/hejunlin/AndroidStudioProjects/FFmpegAudio/app/src/main/jni/FFmpegCore.c: getPCM:>> getPcm data_size=188

    40. 05-07 10:14:04.980 D/AudioTrackShared: front(0x0), mIsOut 1, avail 2822, mFrameCount 2822, filled 0

    41. 05-07 10:14:04.980 V/AudioTrack: obtainBuffer(940) returned 2822 = 940 + 1882 err 0

    42. 05-07 10:14:04.980 D/AudioTrackShared: front(0x0), mIsOut 1, avail 2775, mFrameCount 2822, filled 47

    43. 05-07 10:14:04.980 V/AudioTrack: obtainBuffer(893) returned 2775 = 893 + 1882 err 0

    44. 05-07 10:14:04.980 D//Users/hejunlin/AndroidStudioProjects/FFmpegAudio/app/src/main/jni/OpenSL_ES_Core.c: bqPlayerCallback:>> buffere queue callback

    45. 05-07 10:14:04.980 D//Users/hejunlin/AndroidStudioProjects/FFmpegAudio/app/src/main/jni/FFmpegCore.c: getPCM:>> getPcm

    46. 05-07 10:14:04.980 D//Users/hejunlin/AndroidStudioProjects/FFmpegAudio/app/src/main/jni/FFmpegCore.c: getPCM:>> getPcm data_size=4608

    47. 05-07 10:14:04.980 D/AudioTrackShared: front(0x0), mIsOut 1, avail 1882, mFrameCount 2822, filled 940

    48. 05-07 10:14:04.980 V/AudioTrack: obtainBuffer(940) returned 1882 = 940 + 942 err 0

    49. 05-07 10:14:04.980 D/AudioTrackShared: front(0x0), mIsOut 1, avail 1623, mFrameCount 2822, filled 1199

    50. 05-07 10:14:04.980 V/AudioTrack: obtainBuffer(681) returned 1623 = 681 + 942 err 0

    51. 05-07 10:14:04.980 D//Users/hejunlin/AndroidStudioProjects/FFmpegAudio/app/src/main/jni/OpenSL_ES_Core.c: bqPlayerCallback:>> buffere queue callback

    52. 05-07 10:14:04.980 D//Users/hejunlin/AndroidStudioProjects/FFmpegAudio/app/src/main/jni/FFmpegCore.c: getPCM:>> getPcm

    53. 05-07 10:14:04.981 D//Users/hejunlin/AndroidStudioProjects/FFmpegAudio/app/src/main/jni/FFmpegCore.c: getPCM:>> getPcm data_size=4608

    54. 05-07 10:14:04.981 D/AudioTrackShared: front(0x0), mIsOut 1, avail 942, mFrameCount 2822, filled 1880

    55. 05-07 10:14:04.981 V/AudioTrack: obtainBuffer(940) returned 942 = 940 + 2 err 0

    56. 05-07 10:14:04.981 D/AudioTrackShared: front(0x0), mIsOut 1, avail 471, mFrameCount 2822, filled 2351

    57. 05-07 10:14:04.981 V/AudioTrack: obtainBuffer(469) returned 471 = 469 + 2 err 0

    58. 05-07 10:14:04.981 D//Users/hejunlin/AndroidStudioProjects/FFmpegAudio/app/src/main/jni/OpenSL_ES_Core.c: bqPlayerCallback:>> buffere queue callback

    59. 05-07 10:14:04.981 D//Users/hejunlin/AndroidStudioProjects/FFmpegAudio/app/src/main/jni/FFmpegCore.c: getPCM:>> getPcm

    60. 05-07 10:14:04.981 D//Users/hejunlin/AndroidStudioProjects/FFmpegAudio/app/src/main/jni/FFmpegCore.c: getPCM:>> getPcm data_size=4608

    61. http://blog.renren.com/blog/937184755/994083793
      http://blog.renren.com/blog/937184755/994083886
      http://blog.renren.com/blog/937184755/994084167
      http://gamebbs.51.com/thread-324928-1-1.html
      http://blog.163.com/m13094739605_1/blog/static/27240604620174100133493/
      http://blog.163.com/m13094739605_1/blog/static/2724060462017410028912/
      http://blog.163.com/m13094739605_1/blog/static/27240604620174100237428/
      http://blog.163.com/m13094739605_1/blog/static/27240604620174100315903/
      http://www.230la.com/com/wz801234567/news/itemid-3253535.html



FFmpeg总结（十一）用ffmpeg进行转格式，Android下播放网络音频流

标签：jnienv   创建   网络   native   count   i/o   引用   height   tsp

原文地址：http://www.cnblogs.com/wz901881/p/6833452.html
踩
(0)
赞
(0)

举报
评论 一句话评论（0）
登录后才能评论！
分享档案
更多>
2021年07月29日 (22)
2021年07月28日 (40)
2021年07月27日 (32)
2021年07月26日 (79)
2021年07月23日 (29)
2021年07月22日 (30)
2021年07月21日 (42)
2021年07月20日 (16)
2021年07月19日 (90)
2021年07月16日 (35)
周排行
mamicode.com排行更多图片
更多
友情链接
兰亭集智   国之画   百度统计   站长统计   阿里云   chrome插件   新版天听网
关于我们 - 联系我们 - 留言反馈
© 2014 mamicode.com 版权所有  联系我们:gaon5@hotmail.com
迷上了代码！
