1. 首先确保图片的名称为 ***@1x.png， ***@2x.png 或 ***@3x.png

2. 复制图片到以下目录

<cordova_project_root>/platforms/ios/<project_name>/Resources
Resources文件夹不存在的话，请自行创建。

3. 复制图片到XCode的Resources文件夹下

大功告成！！！下来就可以在项目中正常使用了

To import image resources for iOS, it is slightly trickier, because you have to register your file in Xcode project file with help from Xcode, and there are two ways of doing this. Let‘s start with the old school way. iOS also shares similar concept with Android in terms of pixel density. iPhone to iPhone 3GS uses 1x the resolution, iPhone 4 to iPhone 6 uses 2x the resolution while iPhone 6 Plus and above uses 3x the resolution (even though it‘s actually down scaled, but that‘s a different discussion). In the old school way, you have to name your images with @1x, @2x, and @3x suffix with respect to their target density. eg. icon@2x.png. Here is a documentation that explains this concept. You then have to move it under

<cordova_project_root>/platforms/ios/<project_name>/Resources

Then open your native iOS project with Xcode by double clicking on

<cordova_project_root>/platforms/ios/<project_name>.xcodeproj

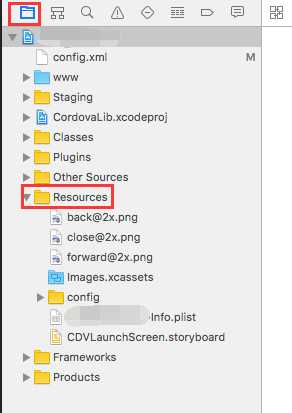

In the left hand side panel, make sure you are in Project navigator tab. Then you can see a list of directories under your project. One of them being Resources, but you don‘t see your newly added images there. Now you need to drag your images fron Finder to Xcode and drop it under Resource folder. In your JavaScript config, you can then reference to them without suffix or extension. eg. With the previous example, simply icon will suffice.
