views provides support for creating dialog boxes and other kinds of windows through its Widget object. The developer creates a WidgetDelegate (or sub-interface) implementation that provides the Window with the necessary information to display itself, and also provides callbacks for notifications about windowing events.
A Simple ExampleTo create a simple window:
#include "base/basictypes.h"
#include "base/compiler_specific.h"
#include "base/utf_string_conversions.h"
#include "ui/gfx/canvas.h"
#include "ui/views/controls/label.h"
#include "ui/views/view.h"
#include "ui/views/widget/widget.h"
#include "ui/views/widget/widget_delegate.h"
class WindowView : public views::WidgetDelegateView {
public:
WindowView() : label_(NULL) {
Init();
}
virtual ~WindowView() {}
private:
// Overridden from views::View:
virtual void OnPaint(gfx::Canvas* canvas) OVERRIDE {
canvas->FillRect(GetLocalBounds(), SK_ColorWHITE); }
virtual void Layout() OVERRIDE {
gfx::Size ps = label_->GetPreferredSize();
label_->SetBounds((width() - ps.width()) / 2, (height() - ps.height()) / 2, ps.width(), ps.height());
}
virtual gfx::Size GetPreferredSize() OVERRIDE {
gfx::Size ps = label_->GetPreferredSize();
ps.set_width(ps.width() + 200);
ps.set_height(ps.height() + 200);
return ps;
}
// Overridden from views::WidgetDelegate:
virtual string16 GetWindowTitle() const OVERRIDE{
return ASCIIToUTF16("Hello World Window");
}
virtual bool CanResize() const OVERRIDE {
return true;
}
virtual bool CanMaximize() const OVERRIDE {
return true;
}
virtual views::View* GetContentsView() OVERRIDE {
return this;
}
void Init() {
label_ = new views::Label(ASCIIToUTF16("Hello, World!"));
AddChildView(label_);
}
views::Label* label_;
DISALLOW_COPY_AND_ASSIGN(WindowView);
};
...
views::Widget::CreateWindow(new WindowView)->Show();
The window will delete itself when the user closes it, which will cause the RootView within it to be destroyed, including the WindowView.
WidgetDelegateThe WidgetDelegate is an interface that provides information to the Widget class used when displaying the window, such as its title and icon, as well as properties such as whether or not the window can be resized. It also provides callbacks for events like closing. It has an accessor window() which provides access to the associated Window object. A Widget has a ContentsView, provided by the WidgetDelegate, which is a View that is inserted into the Window‘s client area.
DialogDelegateA DialogDelegate is a specialized kind of WidgetDelegate specific to dialog boxes that have OK/Cancel buttons. The DialogDelegate and its associated ClientView (see below) provide built in OK/Cancel buttons, keyboard handlers for Esc/Enter and enabling for those features. As a user, you write a View that is inserted into the DialogClientView that provides the contents of the dialog box, and implement DialogDelegate instead of WidgetDelegate, which provides callbacks for when the buttons are clicked as well as methods to provide the button text, etc.
Client and Non Client Views Due to Chrome‘s non-standard window design, views supports custom rendered non-client areas. This is supported via the Window class and NonClientFrameView subclasses. To provide a custom window frame, a Viewsubclasses NonClientFrameView. This allows the overriding View to render and respond to events from the non-client areas of a window. views contains two built in type that do this - CustomFrameView and NativeFrameView. These are used for standard dialog boxes and top level windows.
For the Browser Window, different subclasses of NonClientFrameView are used (GlassBrowserFrameView and OpaqueBrowserFrameView). To allow these to be used the browser overrides Window‘s CreateFrameViewForWindow method to construct the appropriate frame view.

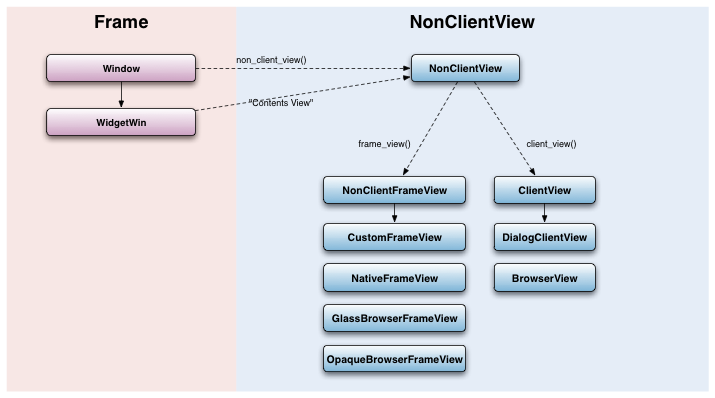

Aside from the RootView, the topmost View in a Window‘s View hierarchy is the NonClientView. This view is a container of exactly two views - the NonClientFrameView described above and a ClientView or subclass. The ClientView subclass contains the contents of the client area of the window (the stuff inside the titlebar/frame). A common ClientView subclass is DialogClientView, which provides built in handling for OK/Cancel buttons and a dialog theme background. The specific ClientView to be used is specified by a WidgetDelegate in its CreateClientView implementation. The default implementation of DialogDelegate automatically creates a DialogClientView. Custom WidgetDelegates can implement this method to return their own ClientView, which is what BrowserView does (the Browser window‘s WidgetDelegate implementor) to return itself. The ClientView API is fairly minimal except it is given a chance to perform non-client hit-testing, which is how the draggable title bar within the TabStrip and the resize corner of windows is implemented.
The ClientView and NonClientFrameView are siblings because it is fairly common for Views to do one-time initialization when they are inserted into a View hierarchy and DWM toggling on Windows Vista and newer mean the NonClientFrameView needs to be swapped out when the DWM is enabled or disabled. As such if the ClientView were a child of the NonClientFrameView it would be re-parented, meaning its children might re-initialize with negative side-effects.
Creating a WindowSome simple code to create a window using the WindowView defined in the example above:
views::Widget* window = views::Widget::CreateWindow(new WindowView);
window->Show();
|
