vertx的HttpServer模块

/**
   * 启动 HttpServer
   * multi instances 采用 synchronized防止线程安全问题
   * addHandlers 方法是actor模式的实现，1 instances : 1 verticle(actor) : 1 VertxThread
   */
 public synchronized HttpServer listen(int port, String host, Handler<AsyncResult<HttpServer>> listenHandler) {
    //是否有配置requestHandler或webscoket
    if (requestStream.handler() == null && wsStream.handler() == null) {
      throw new IllegalStateException("Set request or websocket handler first");
    }
    if (listening) {
      throw new IllegalStateException("Already listening");
    }
    listenContext = vertx.getOrCreateContext(); //根据currentThread 获取Context，获取null则create
    serverOrigin = (options.isSsl() ? "https" : "http") + "://" + host + ":" + port;//判断是否启用ssl
    List<HttpVersion> applicationProtocols = options.getAlpnVersions();//获取协议版本,默认支持1.1和2.0

    if (listenContext.isWorkerContext()) {//是否使用　Worker Verticles ,不予许使用HTTP2.0
      applicationProtocols = applicationProtocols.stream().filter(v -> v != HttpVersion.HTTP_2).collect(Collectors.toList());
    }
    sslHelper.setApplicationProtocols(applicationProtocols);//应用协议

    synchronized (vertx.sharedHttpServers()) {//multi instances 线程安全问题
      this.actualPort = port;
      id = new ServerID(port, host);//生成服务id
      HttpServerImpl shared = vertx.sharedHttpServers().get(id);

      if (shared == null || port == 0) {//判断shard Map , port是否是启动过 instances
        /**
          * frist instances
          */
        serverChannelGroup = new DefaultChannelGroup("vertx-acceptor-channels", GlobalEventExecutor.INSTANCE);
        ServerBootstrap bootstrap = new ServerBootstrap();
        //定义两个线程组,accept size 1, 重写的VertxEventLoopGroup
        bootstrap.group(vertx.getAcceptorEventLoopGroup(), availableWorkers);

        applyConnectionOptions(bootstrap);//添加Connection Accept之后的附属选项
        sslHelper.validate(vertx);//验证ssl相关参数
        bootstrap.childHandler(new ChannelInitializer<Channel>() {

          @Override
          /**
            * connection accept 调度切换线程后触发
            */
          protected void initChannel(Channel ch) throws Exception {
          　//限流策略,读大于写，导致内存无限扩大，最终 OOM
            if (requestStream.isPaused() || wsStream.isPaused()) {
              ch.close(); //超过服务承载能力,关闭连接
              return;
            }
            ChannelPipeline pipeline = ch.pipeline();
            if (sslHelper.isSSL()) {//是否启用ssl
              io.netty.util.concurrent.Future<Channel> handshakeFuture;
              if (options.isSni()) {//是否启用sni，单服务多证书情况
                VertxSniHandler sniHandler = new VertxSniHandler(sslHelper, vertx);
                pipeline.addLast(sniHandler);
                handshakeFuture = sniHandler.handshakeFuture();
              } else {
                SslHandler handler = new SslHandler(sslHelper.createEngine(vertx));
                pipeline.addLast("ssl", handler);
                handshakeFuture = handler.handshakeFuture();
              }
              //侦听 TLS handshake
              handshakeFuture.addListener(future -> {
                if (future.isSuccess()) {// 握手成功
                  if (options.isUseAlpn()) {//是否启用alpn，协调使用的protocol
                    //获取使用的协议
                    SslHandler sslHandler = pipeline.get(SslHandler.class);
                    String protocol = sslHandler.applicationProtocol();
                    if ("h2".equals(protocol)) {//是否是http2.0
                      handleHttp2(ch);
                    } else {
                      handleHttp1(ch);
                    }
                  } else {
                    handleHttp1(ch);
                  }
                } else {//握手失败
                  HandlerHolder<HttpHandlers> handler = httpHandlerMgr.chooseHandler(ch.eventLoop());
                  handler.context.executeFromIO(() -> handler.handler.exceptionHandler.handle(future.cause()));
                }
              });
            } else {
              //是否是启用http2,通过VM Options: -Dvertx.disableH2c 设置;默认false
              if (DISABLE_H2C) {
                handleHttp1(ch);
              } else {
                IdleStateHandler idle;
                if (options.getIdleTimeout() > 0) {//是否定义最大空闲时间
                  pipeline.addLast("idle", idle = new IdleStateHandler(0, 0, options.getIdleTimeout()));
                } else {
                  idle = null;
                }

                /**直接使用明文的http2.0或1.1处理*/
                pipeline.addLast(new Http1xOrH2CHandler() {
                  @Override
                  protected void configure(ChannelHandlerContext ctx, boolean h2c) {
                    if (idle != null) {
                      //移除idleHandler，重新添加，不用注意次序
                      pipeline.remove(idle);
                    }
                    if (h2c) {//判断协议，如果定义idle则会重新添加 idleHandler
                      handleHttp2(ctx.channel());
                    } else {
                      handleHttp1(ch);
                    }
                  }

                  @Override
                  public void userEventTriggered(ChannelHandlerContext ctx, Object evt) throws Exception {
                    if (evt instanceof IdleStateEvent && ((IdleStateEvent) evt).state() == IdleState.ALL_IDLE) {
                      ctx.close();
                    }
                  }

                  @Override
                  public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
                    super.exceptionCaught(ctx, cause);
                    //根据eventloop选中对应的handler进行异常传播
                    HandlerHolder<HttpHandlers> handler = httpHandlerMgr.chooseHandler(ctx.channel().eventLoop());
                    handler.context.executeFromIO(() -> handler.handler.exceptionHandler.handle(cause));
                  }
                });
              }
            }
          }
        });

        addHandlers(this, listenContext);//添加一个httpHandler到httpHandlerMgr中
        try {
        　//listen ip:port
          bindFuture = AsyncResolveConnectHelper.doBind(vertx, SocketAddress.inetSocketAddress(port, host), bootstrap);
          bindFuture.addListener(res -> {
            if (res.failed()) {
              vertx.sharedHttpServers().remove(id);
            } else {
              Channel serverChannel = res.result();
              HttpServerImpl.this.actualPort = ((InetSocketAddress) serverChannel.localAddress()).getPort();
              serverChannelGroup.add(serverChannel);//添加当前的ServerSocketChannel
              //初始化metrcis指标
              VertxMetrics metrics = vertx.metricsSPI();
              this.metrics = metrics != null ? metrics.createMetrics(this, new SocketAddressImpl(port, host), options) : null;
            }
          });
        } catch (final Throwable t) {
          if (listenHandler != null) {
            vertx.runOnContext(v -> listenHandler.handle(Future.failedFuture(t)));
          } else {
            log.error(t);
          }
          listening = false;
          return this;
        }
        vertx.sharedHttpServers().put(id, this);//启动的一个instances 添加到 Map中
        actualServer = this;
      } else {//other instances
        actualServer = shared;
        this.actualPort = shared.actualPort;
        addHandlers(actualServer, listenContext);//添加一个httpHandler到httpHandlerMgr中
        //初始化metrics
        VertxMetrics metrics = vertx.metricsSPI();
        this.metrics = metrics != null ? metrics.createMetrics(this, new SocketAddressImpl(port, host), options) : null;
      }
      //服务 bind 状态
      actualServer.bindFuture.addListener(future -> {
        if (listenHandler != null) {
          final AsyncResult<HttpServer> res;
          if (future.succeeded()) {
            res = Future.succeededFuture(HttpServerImpl.this);
          } else {
            res = Future.failedFuture(future.cause());
            listening = false;
          }
          listenContext.runOnContext((v) -> listenHandler.handle(res));//回调处理
        } else if (future.failed()) {
          listening = false;
          log.error(future.cause());
        }
      });
    }
    return this;
}

 private void addHandlers(HttpServerImpl server, ContextImpl context) {
        server.httpHandlerMgr.addHandler(
          new HttpHandlers(
            requestStream.handler(),
            wsStream.handler(),
            connectionHandler,
            exceptionHandler == null ? DEFAULT_EXCEPTION_HANDLER : exceptionHandler)
          , context);
 }


    public class HttpHandlers {
      final Handler<HttpServerRequest> requestHandler;
      final Handler<ServerWebSocket> wsHandler;
      final Handler<HttpConnection> connectionHandler;
      final Handler<Throwable> exceptionHandler;

      /**
        * @param requestHandler     Http Request Handler
        * @param wsHandler          WebScoket Handler
        * @param connectionHander   TCP Connection Handler
        * @param exceptionHander    Exception Handlet
        */
      public HttpHandlers(
        Handler<HttpServerRequest> requestHandler,
        Handler<ServerWebSocket> wsHandler,
        Handler<HttpConnection> connectionHandler,
        Handler<Throwable> exceptionHandler) {
        this.requestHandler = requestHandler;
        this.wsHandler = wsHandler;
        this.connectionHandler = connectionHandler;
        this.exceptionHandler = exceptionHandler;
      }
    }

    public class HandlerManager<T> {
        public synchronized void addHandler(T handler, ContextImpl context) {
            /**

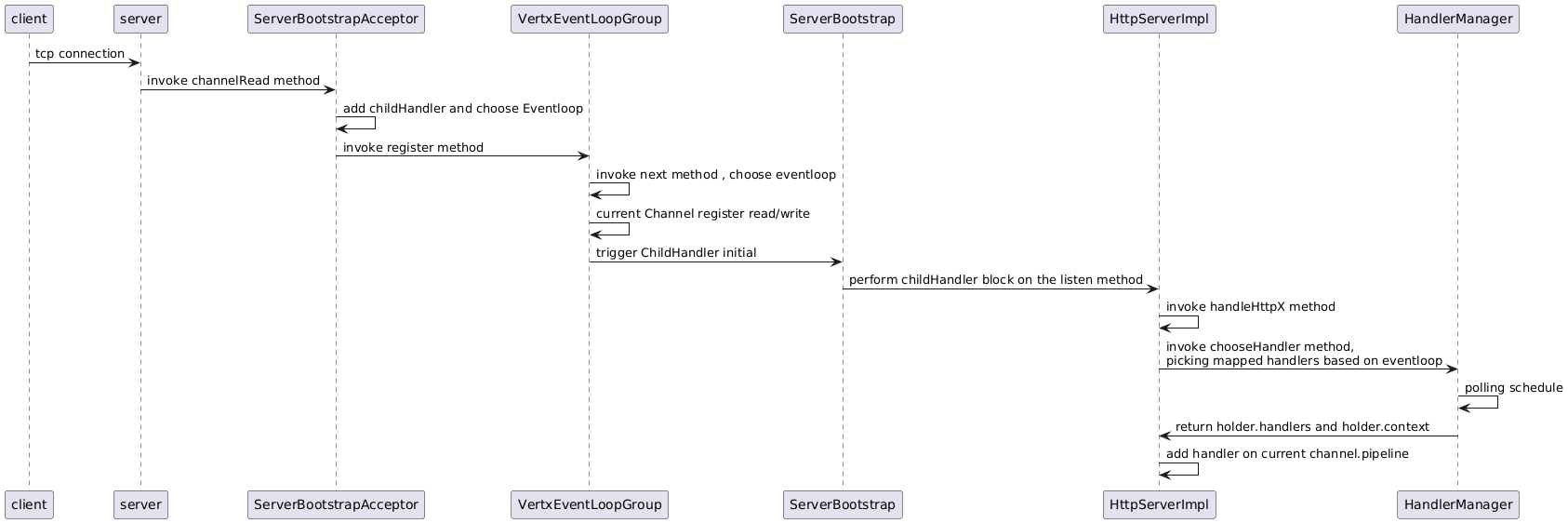

              * 添加一个eventloop(Thread)到 VertxEventLoopGroup 集合中．
              * accept状态后的read/write事件,线程调度在VertxEventLoopGroup类的next方法，
              * vertx重写choose策略
              */
            EventLoop worker = context.nettyEventLoop();
            availableWorkers.addWorker(worker);
            /**

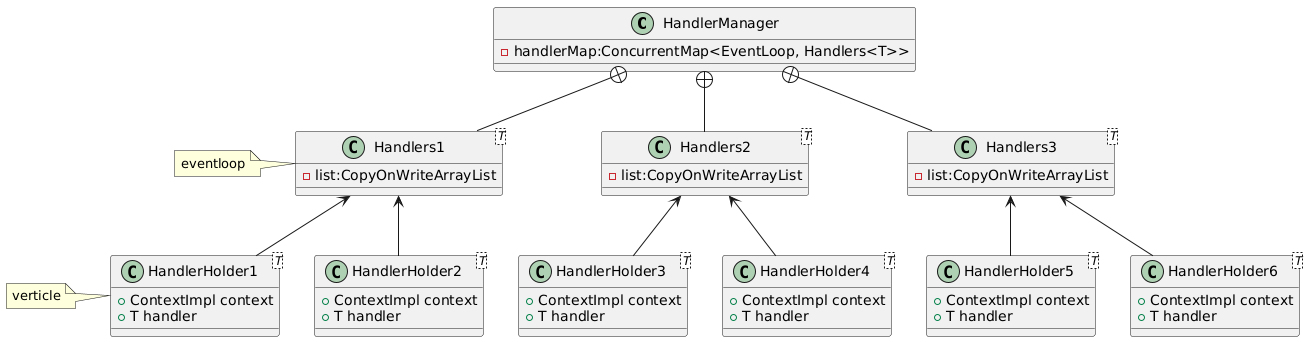

              * 添加handlers,并且绑定handler和context映射关系．
              * 注意部署的instances size不要超过EventLoopPoolSize，
              * 否则出现 1 context : N handler(verticle)
              */
            Handlers<T> handlers = new Handlers<>();
            Handlers<T> prev = handlerMap.putIfAbsent(worker, handlers);
            if (prev != null) {
              handlers = prev;
            }
            handlers.addHandler(new HandlerHolder<>(context, handler));
            hasHandlers = true;
        }
    }
