用codemirror实现一个自己的简单hive ql编辑器

时间：2018-04-03 19:19:05      阅读：1085      评论：0      收藏：0      [点我收藏+]

标签：ast   text   offset   ror   unknown   names   .net   r.js   indexof

什么是codemirror已经codemirror能干什么在这就不多说了，直接看官方文档http://codemirror.net/。首先去现在一个最新的codemirror:http://codemirror.net/codemirror.zip

codemirror自身提供了一个可复用的sql mode,里面支持了绝大多数的sql类型：text/x-sql, text/x-mysql, text/x-mariadb, text/x-cassandra, text/x-plsql, text/x-mssql, text/x-hive, text/x-pgsql, text/x-gql.

这里我想用text/x-hive编辑高亮和自动完成功能，因为我自己写了一个job调度工具，里面要写一些hive ql去调度执行。

要使用sql mode,页面上需要引入(路径因人而异)：

<link rel="stylesheet" href="js/codemirror-5.25.0/lib/codemirror.css"/>
<script src="js/codemirror-5.25.0/lib/codemirror.js"></script>
<script src="js/codemirror-5.25.0/mode/sql/sql.js"></script>

如果我们添加自动提示功能，那么还要加入另外两个可复用的插件show-hint喝sql-hint：

<link rel="stylesheet" href="js/codemirror-5.25.0/addon/hint/show-hint.css"/>
<script src="js/codemirror-5.25.0/addon/hint/show-hint.js"></script>
<script src="js/codemirror-5.25.0/addon/hint/sql-hint.js"></script>

如果想让当前编辑行高亮，那么需要加入另一个插件：

<script src="js/codemirror-5.25.0/addon/selection/active-line.js"></script>

一个完整的jsp页面如下:

<%@ page language="java" pageEncoding="utf-8"%>
<!doctype html>

<title>CodeMirror: SQL Mode for CodeMirror</title>
<meta charset="utf-8"/>
<script src="js/jquery-2.2.3.min.js"></script>
<link rel="stylesheet" href="js/codemirror-5.25.0/lib/codemirror.css"/>
<script src="js/codemirror-5.25.0/lib/codemirror.js"></script>
<script src="js/codemirror-5.25.0/mode/sql/sql.js"></script>
<link rel="stylesheet" href="js/codemirror-5.25.0/addon/hint/show-hint.css"/>
<script src="js/codemirror-5.25.0/addon/hint/show-hint.js"></script>
<script src="js/codemirror-5.25.0/addon/hint/sql-hint.js"></script>
<script src="js/codemirror-5.25.0/addon/selection/active-line.js"></script>
<style>
    .CodeMirror {
        border-top: 1px solid black;
        border-bottom: 1px solid black;
    }
</style>

<article>
    <h2>SQL Mode for CodeMirror</h2>

    <form>
            <textarea id="code" name="code">-- SQL Mode for CodeMirror
SELECT SQL_NO_CACHE DISTINCT
        @var1 AS `val1`, @‘val2‘, @global.‘sql_mode‘,
        1.1 AS `float_val`, .14 AS `another_float`, 0.09e3 AS `int_with_esp`,
        0xFA5 AS `hex`, x‘fa5‘ AS `hex2`, 0b101 AS `bin`, b‘101‘ AS `bin2`,
        DATE ‘1994-01-01‘ AS `sql_date`, { T "1994-01-01" } AS `odbc_date`,
        ‘my string‘, _utf8‘your string‘, N‘her string‘,
        TRUE, FALSE, UNKNOWN
    FROM DUAL
    -- space needed after ‘--‘
    # 1 line comment
    /* multiline
    comment! */
    LIMIT 1 OFFSET 0;
</textarea>
    </form>
    <script>
        window.onload = function () {
            $.getJSON("job/schema/1",{},function(result){
                var mime = ‘text/x-hive‘;
                window.editor = CodeMirror.fromTextArea(document.getElementById(‘code‘), {
                    mode: mime,
                    indentWithTabs: true,
                    smartIndent: true,
                    styleActiveLine: true,
                    lineNumbers: true,
                    lineWrapping: true,
                    matchBrackets: true,
                    autofocus: true,
                    extraKeys: {"Ctrl-Space": "autocomplete"},
                    hintOptions: {
                        tables: result.data
                    }
                });
                window.editor.on("keyup", function (cm, event) {
                    //所有的字母和‘$‘,‘{‘,‘.‘在键按下之后都将触发自动完成
                    if (!cm.state.completionActive &&
                            ((event.keyCode >= 65 && event.keyCode <= 90 ) || event.keyCode == 52 || event.keyCode == 219 || event.keyCode == 190)) {
                        CodeMirror.commands.autocomplete(cm, null, {completeSingle: false});
                    }
                });
            });
        };
    </script>

</article>

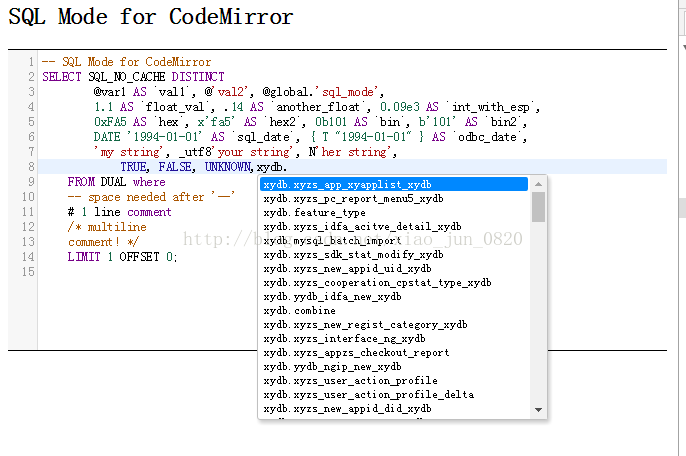

我会在页面加载完成之后发起一个异步请求，获取所有可以智能提示的表名，然后创建编辑器实例，将所有的表数据放到hintOptions的tables属性中:

hintOptions: {
                      tables: result.data
                  }

result json形如：

{
  "resultCode": "00",
  "description": "操作成功",
  "data": {
    "xyplat.adl_abnormal_app_overview_xyplat": [],
    "nxyzs.app_cold": [],
    "xydb.xyzs_app_xyapplist_xydb": [],
    "data_mining.bdl_cnxy_biguser_login_days": [],
    "data_mining.adl_cnxy_profileshow_payavg": []
  }
}

hintOptions的tables属性是一个object,key是表名，value是一个数组，数组里面是这个表对应的所有列名。我这里没有取表的列，所以返回了一个空数组,只在输入表名的时候会智能提示。



以上都是拿来就能用的东西，不需要改动codemirror本身代码。

由于我使用了一些时间模板变量，我也希望能加到智能提示当中去，于是需要去定制改动一下sql-hint插件:

// CodeMirror, copyright (c) by Marijn Haverbeke and others
// Distributed under an MIT license: http://codemirror.net/LICENSE

(function(mod) {
  if (typeof exports == "object" && typeof module == "object") // CommonJS
    mod(require("../../lib/codemirror"), require("../../mode/sql/sql"));
  else if (typeof define == "function" && define.amd) // AMD
    define(["../../lib/codemirror", "../../mode/sql/sql"], mod);
  else // Plain browser env
    mod(CodeMirror);
})(function(CodeMirror) {
  "use strict";

  var dtTemplates;//定义一个数组用来存放时间模板变量
  var tables;
  var defaultTable;
  var keywords;
  var identifierQuote;
  var CONS = {
    QUERY_DIV: ";",
    ALIAS_KEYWORD: "AS"
  };
  var Pos = CodeMirror.Pos, cmpPos = CodeMirror.cmpPos;

  function isArray(val) { return Object.prototype.toString.call(val) == "[object Array]" }

  //创建所有时间模板变量
  function getDtTemplates() {
        var s = new Array();
        s.push("${dt}");
        s.push("${cdt}");
        s.push("${wfd}");
        s.push("${wld}");
        s.push("${mfd}");
        s.push("${mld}");
        for (var i=1;i<=99;i++)
        {
            s.push("${dt"+i+"}");
            s.push("${dt_"+i+"}");
            s.push("${cdt"+i+"}");
            s.push("${cdt_"+i+"}");
        }
        for (var i=1;i<=12;i++)
        {
            s.push("${dt"+i+"m}");
            s.push("${dt_"+i+"m}");
            s.push("${cdt"+i+"m}");
            s.push("${cdt_"+i+"m}");
        }
        return s;
  }

  function getKeywords(editor) {
    var mode = editor.doc.modeOption;
    if (mode === "sql") mode = "text/x-sql";
    return CodeMirror.resolveMode(mode).keywords;
  }

  function getIdentifierQuote(editor) {
    var mode = editor.doc.modeOption;
    if (mode === "sql") mode = "text/x-sql";
    return CodeMirror.resolveMode(mode).identifierQuote || "`";
  }

  function getText(item) {
    return typeof item == "string" ? item : item.text;
  }

  function wrapTable(name, value) {
    if (isArray(value)) value = {columns: value}
    if (!value.text) value.text = name
    return value
  }

  function parseTables(input) {
    var result = {}
    if (isArray(input)) {
      for (var i = input.length - 1; i >= 0; i--) {
        var item = input[i]
        result[getText(item).toUpperCase()] = wrapTable(getText(item), item)
      }
    } else if (input) {
      for (var name in input)
        result[name.toUpperCase()] = wrapTable(name, input[name])
    }
    return result
  }

  function getTable(name) {
    return tables[name.toUpperCase()]
  }

  function shallowClone(object) {
    var result = {};
    for (var key in object) if (object.hasOwnProperty(key))
      result[key] = object[key];
    return result;
  }

  function match(string, word) {
    var len = string.length;
    var sub = getText(word).substr(0, len);
    return string.toUpperCase() === sub.toUpperCase();
  }

  function addMatches(result, search, wordlist, formatter) {
    if (isArray(wordlist)) {
      for (var i = 0; i < wordlist.length; i++)
        if (match(search, wordlist[i])) result.push(formatter(wordlist[i]))
    } else {
      for (var word in wordlist) if (wordlist.hasOwnProperty(word)) {
        var val = wordlist[word]
        if (!val || val === true)
          val = word
        else
          val = val.displayText ? {text: val.text, displayText: val.displayText} : val.text
        if (match(search, val)) result.push(formatter(val))
      }
    }
  }

  function cleanName(name) {
    // Get rid name from identifierQuote and preceding dot(.)
    if (name.charAt(0) == ".") {
      name = name.substr(1);
    }
    // replace doublicated identifierQuotes with single identifierQuotes
    // and remove single identifierQuotes
    var nameParts = name.split(identifierQuote+identifierQuote);
    for (var i = 0; i < nameParts.length; i++)
      nameParts[i] = nameParts[i].replace(new RegExp(identifierQuote,"g"), "");
    return nameParts.join(identifierQuote);
  }

  function insertIdentifierQuotes(name) {
    var nameParts = getText(name).split(".");
    for (var i = 0; i < nameParts.length; i++)
      nameParts[i] = identifierQuote +
        // doublicate identifierQuotes
        nameParts[i].replace(new RegExp(identifierQuote,"g"), identifierQuote+identifierQuote) +
        identifierQuote;
    var escaped = nameParts.join(".");
    if (typeof name == "string") return escaped;
    name = shallowClone(name);
    name.text = escaped;
    return name;
  }

  function nameCompletion(cur, token, result, editor) {
    // Try to complete table, column names and return start position of completion
    var useIdentifierQuotes = false;
    var nameParts = [];
    var start = token.start;
    var cont = true;
    while (cont) {
      cont = (token.string.charAt(0) == ".");
      useIdentifierQuotes = useIdentifierQuotes || (token.string.charAt(0) == identifierQuote);

      start = token.start;
      nameParts.unshift(cleanName(token.string));

      token = editor.getTokenAt(Pos(cur.line, token.start));
      if (token.string == ".") {
        cont = true;
        token = editor.getTokenAt(Pos(cur.line, token.start));
      }
    }

    // Try to complete table names
    var string = nameParts.join(".");
    addMatches(result, string, tables, function(w) {
      return useIdentifierQuotes ? insertIdentifierQuotes(w) : w;
    });

    // Try to complete columns from defaultTable
    addMatches(result, string, defaultTable, function(w) {
      return useIdentifierQuotes ? insertIdentifierQuotes(w) : w;
    });

    // Try to complete columns
    string = nameParts.pop();
    var table = nameParts.join(".");

    var alias = false;
    var aliasTable = table;
    // Check if table is available. If not, find table by Alias
    if (!getTable(table)) {
      var oldTable = table;
      table = findTableByAlias(table, editor);
      if (table !== oldTable) alias = true;
    }

    var columns = getTable(table);
    if (columns && columns.columns)
      columns = columns.columns;

    if (columns) {
      addMatches(result, string, columns, function(w) {
        var tableInsert = table;
        if (alias == true) tableInsert = aliasTable;
        if (typeof w == "string") {
          w = tableInsert + "." + w;
        } else {
          w = shallowClone(w);
          w.text = tableInsert + "." + w.text;
        }
        return useIdentifierQuotes ? insertIdentifierQuotes(w) : w;
      });
    }

    return start;
  }

  function eachWord(lineText, f) {
    if (!lineText) return;
    var excepted = /[,;]/g;
    var words = lineText.split(" ");
    for (var i = 0; i < words.length; i++) {
      f(words[i]?words[i].replace(excepted, ‘‘) : ‘‘);
    }
  }

  function findTableByAlias(alias, editor) {
    var doc = editor.doc;
    var fullQuery = doc.getValue();
    var aliasUpperCase = alias.toUpperCase();
    var previousWord = "";
    var table = "";
    var separator = [];
    var validRange = {
      start: Pos(0, 0),
      end: Pos(editor.lastLine(), editor.getLineHandle(editor.lastLine()).length)
    };

    //add separator
    var indexOfSeparator = fullQuery.indexOf(CONS.QUERY_DIV);
    while(indexOfSeparator != -1) {
      separator.push(doc.posFromIndex(indexOfSeparator));
      indexOfSeparator = fullQuery.indexOf(CONS.QUERY_DIV, indexOfSeparator+1);
    }
    separator.unshift(Pos(0, 0));
    separator.push(Pos(editor.lastLine(), editor.getLineHandle(editor.lastLine()).text.length));

    //find valid range
    var prevItem = null;
    var current = editor.getCursor();
    for (var i = 0; i < separator.length; i++) {
      if ((prevItem == null || cmpPos(current, prevItem) > 0) && cmpPos(current, separator[i]) <= 0) {
        validRange = {start: prevItem, end: separator[i]};
        break;
      }
      prevItem = separator[i];
    }

    var query = doc.getRange(validRange.start, validRange.end, false);

    for (var i = 0; i < query.length; i++) {
      var lineText = query[i];
      eachWord(lineText, function(word) {
        var wordUpperCase = word.toUpperCase();
        if (wordUpperCase === aliasUpperCase && getTable(previousWord))
          table = previousWord;
        if (wordUpperCase !== CONS.ALIAS_KEYWORD)
          previousWord = word;
      });
      if (table) break;
    }
    return table;
  }

  CodeMirror.registerHelper("hint", "sql", function(editor, options) {
    //创建所有日期模板变量
    dtTemplates =  getDtTemplates() ;
    tables = parseTables(options && options.tables)
    var defaultTableName = options && options.defaultTable;
    var disableKeywords = options && options.disableKeywords;
    defaultTable = defaultTableName && getTable(defaultTableName);
    keywords = getKeywords(editor);
    identifierQuote = getIdentifierQuote(editor);

    if (defaultTableName && !defaultTable)
      defaultTable = findTableByAlias(defaultTableName, editor);

    defaultTable = defaultTable || [];

    if (defaultTable.columns)
      defaultTable = defaultTable.columns;

    var cur = editor.getCursor();
    var result = [];
    var token = editor.getTokenAt(cur), start, end, search;

    if (token.end > cur.ch) {
      token.end = cur.ch;
      token.string = token.string.slice(0, cur.ch - token.start);
    }
    //将$和{也加入到自动完成规则中来
    if (token.string.match(/^[${.`"\w@]\w*$/)) {
      search = token.string;
      start = token.start;
      end = token.end;
    } else {
      start = end = cur.ch;
      search = "";
    }
    if (search.charAt(0) == "." || search.charAt(0) == identifierQuote) {
      start = nameCompletion(cur, token, result, editor);
    }
    else if (search.charAt(0) == "$") {
      addMatches(result, search, dtTemplates, function(w) {return w;});
    }
    else if (search.charAt(0) == "{") {
        //如果当前token是以‘{‘开头，那么判断一下前一个token是不是‘$‘，如果是的话，将搜索字符串变成以‘${‘开头的字符串去日期模板中匹配自动完成
        token = editor.getTokenAt(Pos(cur.line, token.start));
        if(token.string == "$")
        {
            search = token.string + search;
            start = token.start;
      }
      addMatches(result, search, dtTemplates, function(w) {return w;});
    }
    else {
      addMatches(result, search, tables, function(w) {return w;});
      addMatches(result, search, defaultTable, function(w) {return w;});
      if (!disableKeywords)
        addMatches(result, search, keywords, function(w) {return w.toUpperCase();});
    }

    return {list: result, from: Pos(cur.line, start), to: Pos(cur.line, end)};
  });
});

加了中文注释部分就是我加的一些代码，不一定很严谨，至少实现了功能,当输入token以$或者${开头的时候的都会智能提示时间模板变量，效果如下图：



技术分享图片

当输入表名前缀的时候会智能提示相应匹配的表名：





技术分享图片



若想在一个页面上创建多个codemirror编辑框，则可以这样写：

<%@ page language="java" pageEncoding="utf-8" %>
<!doctype html>

<title>CodeMirror: SQL Mode for CodeMirror</title>
<meta charset="utf-8"/>
<script src="js/jquery-2.2.3.min.js"></script>
<link rel="stylesheet" href="js/codemirror-5.25.0/lib/codemirror.css"/>
<script src="js/codemirror-5.25.0/lib/codemirror.js"></script>
<script src="js/codemirror-5.25.0/mode/sql/sql.js"></script>
<link rel="stylesheet" href="js/codemirror-5.25.0/addon/hint/show-hint.css"/>
<script src="js/codemirror-5.25.0/addon/hint/show-hint.js"></script>
<script src="js/codemirror-5.25.0/addon/hint/sql-hint.js"></script>
<script src="js/codemirror-5.25.0/addon/selection/active-line.js"></script>
<style>
    .CodeMirror {
        border-top: 1px solid black;
        border-bottom: 1px solid black;
    }
</style>
<input type="button" value="获取内容" onclick="getAllSqls()"/>
<article>
    <h2>SQL Mode for CodeMirror</h2>

    <form id="cm_form">

    </form>
    <script>
        window.onload = function () {
            $.getJSON("job/schema/1", {}, function (result) {
                var mime = ‘text/x-hive‘;
                for (var i = 1; i <= 2; i++) {
                    for (var j = 1; j <= 2; j++) {
                        var textarea = document.createElement("textarea");
                        $(textarea).attr("id", ‘code_‘ + i + "_" + j);
                        $(textarea).attr("name", ‘code_‘ + i + "_" + j);
                        document.getElementById(‘cm_form‘).appendChild(textarea);
                        window[‘editor_‘ + i + "_" + j] = CodeMirror.fromTextArea(textarea, {
                            mode: mime,
                            indentWithTabs: true,
                            smartIndent: true,
                            styleActiveLine: true,
                            lineNumbers: true,
                            lineWrapping: true,
                            matchBrackets: true,
                            autofocus: true,
                            extraKeys: {"Ctrl-Space": "autocomplete"},
                            hintOptions: {
                                tables: result.data
                            }
                        });
                        window[‘editor_‘ + i + "_" + j].on("keyup", function (cm, event) {
                            //所有的字母和‘$‘,‘{‘,‘.‘在键按下之后都将触发自动完成
                            if (!cm.state.completionActive &&
                                    ((event.keyCode >= 65 && event.keyCode <= 90 ) || event.keyCode == 52 || event.keyCode == 219 || event.keyCode == 190)) {
                                CodeMirror.commands.autocomplete(cm, null, {completeSingle: false});
                            }
                        });
                    }
                }
            });
        };
        function getAllSqls() {
            for (var i = 1; i <= 2; i++) {
                for (var j = 1; j <= 2; j++) {
                    alert(window[‘editor_‘ + i + "_" + j].getValue());
                }
            }
        }
    </script>

</article>



转自：https://blog.csdn.net/xiao_jun_0820/article/details/69225061



用codemirror实现一个自己的简单hive ql编辑器

标签：ast   text   offset   ror   unknown   names   .net   r.js   indexof

原文地址：https://www.cnblogs.com/zzwlong/p/8710105.html
踩
(0)
赞
(0)

举报
评论 一句话评论（0）
登录后才能评论！
分享档案
更多>
2021年07月29日 (22)
2021年07月28日 (40)
2021年07月27日 (32)
2021年07月26日 (79)
2021年07月23日 (29)
2021年07月22日 (30)
2021年07月21日 (42)
2021年07月20日 (16)
2021年07月19日 (90)
2021年07月16日 (35)
周排行
mamicode.com排行更多图片
更多
友情链接
兰亭集智   国之画   百度统计   站长统计   阿里云   chrome插件   新版天听网
关于我们 - 联系我们 - 留言反馈
© 2014 mamicode.com 版权所有  联系我们:gaon5@hotmail.com
迷上了代码！
