登陆界面(一)(转)

时间:2018-09-07 19:17:59      阅读:233      评论:0      收藏:0      [点我收藏+]

标签:说明   rectangle   amr   soft   str   efi   length   system   ted

原文转自 https://blog.csdn.net/jdh99/article/details/24711531



环境:

主机:WIN7

开发环境:Qt5.2



说明:

用QML设计一个应用的登陆界面

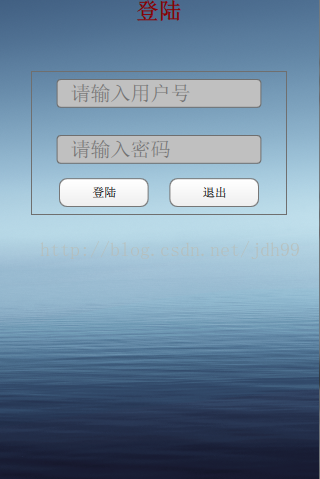

效果图:

技术分享图片



源代码:

main.qml

import QtQuick 2.0

Rectangle
{
    id: login_gui

    width: 320; height: 480

    SystemPalette { id: activePalette }

    //背景图片
    {
        id: background
        anchors { top: parent.top; bottom: parent.bottom }
        anchors.fill: parent
        source: "pics/pic1.png"
        fillMode: Image.PreserveAspectCrop
    }

    //顶烂
    Item
    {
        id: top_bar
        width: login_gui.width; height: login_gui.height * 0.05
        anchors.top: login_gui.top

        Text
        {
            id: title
            anchors { top: parent.top; horizontalCenter: parent.horizontalCenter }
            text: "登陆"
            font.bold: true
            font.pointSize: login_gui.height * 0.05 * 0.7
            color: "dark red"
        }
    }

    //空白栏
    Item
    {
        id: space1
        width: login_gui.width; height: login_gui.height * 0.1
        anchors.top: top_bar.bottom
    }

    //登陆框
    Rectangle
    {
        id: rect1
        width: login_gui.width * 0.8; height: login_gui.height * 0.3
        anchors { top: space1.bottom; horizontalCenter: parent.horizontalCenter }
        border.color: "#707070"
        color: "transparent"

        LineInput
        {
            width: rect1.width * 0.8; height: rect1.height * 0.2
            font_size:height * 0.7
            anchors {horizontalCenter: rect1.horizontalCenter; top: rect1.top; topMargin: 8}
            hint: "请输入用户号"
        }

        LineInput
        {
            width: rect1.width * 0.8; height: rect1.height * 0.2
            font_size:height * 0.7
            anchors {horizontalCenter: rect1.horizontalCenter; bottom: btn_login.top;  bottomMargin: rect1.height * 0.1}
            hint: "请输入密码"
        }

        Button
        {
            id: btn_login
            width: rect1.width * 0.35; height: rect1.height * 0.2
            anchors { left: rect1.left; leftMargin: 28; bottom: rect1.bottom; bottomMargin: 8 }
            text: "登陆"
            //onClicked: SameGame.startNewGame()
        }

        Button
        {
            id: btn_quit
            width: rect1.width * 0.35; height: rect1.height * 0.2
            anchors { right: rect1.right; rightMargin: 28; bottom: rect1.bottom; bottomMargin: 8 }
            text: "退出"
            //onClicked: SameGame.startNewGame()
        }
    }
}



Button.qml

import QtQuick 2.0

Rectangle {
    id: container

    property string text: "Button"

    signal clicked

    width: buttonLabel.width + 20; height: buttonLabel.height + 5
    border { width: 1; color: Qt.darker(activePalette.button) }
    antialiasing: true
    radius: 8

    // color the button with a gradient
    gradient: Gradient {
        GradientStop {
            position: 0.0
            color: {
                if (mouseArea.pressed)
                    return activePalette.dark
                else
                    return activePalette.light
            }
        }
        GradientStop { position: 1.0; color: activePalette.button }
    }

    MouseArea {
        id: mouseArea
        anchors.fill: parent
        onClicked: container.clicked();
    }

    Text {
        id: buttonLabel
        anchors.centerIn: container
        color: activePalette.buttonText
        text: container.text
    }
}



LineInput.qml

import QtQuick 2.0

FocusScope {
    id: wrapper

    property alias text: input.text
    property alias hint: hint.text
    property alias prefix: prefix.text
    property int font_size: 18

    signal accepted

    Rectangle {
        anchors.fill: parent
        border.color: "#707070"
        color: "#c1c1c1"
        radius: 4

        Text {
            id: hint
            anchors { fill: parent; leftMargin: 14 }
            verticalAlignment: Text.AlignVCenter
            text: "Enter word"
            font.pixelSize: font_size
            color: "#707070"
            opacity: input.length ? 0 : 1
        }

        Text {
            id: prefix
            anchors { left: parent.left; leftMargin: 14; verticalCenter: parent.verticalCenter }
            verticalAlignment: Text.AlignVCenter
            font.pixelSize: font_size
            color: "#707070"
            opacity: !hint.opacity
        }

        TextInput {
            id: input
            focus: true
            anchors { left: prefix.right; right: parent.right; top: parent.top; bottom: parent.bottom }
            verticalAlignment: Text.AlignVCenter
            font.pixelSize: font_size
            //color: "#707070"
            color: "black"
            onAccepted: wrapper.accepted()
        }
    }
}



注意

1、以上内容是转载的原文,在下面的测试环境下,无法看到界面,不知道为什么:

开发环境:Qt5.3.1

项目类型:Qt Quick Controls

2、将main.qml改成下面的就可以看到界面了

import QtQuick 2.2
import QtQuick.Controls 1.1

ApplicationWindow {
    visible: true
    width: 640
    height: 480
    title: qsTr("Hello World")

    menuBar: MenuBar {
        Menu {
            title: qsTr("File")
            MenuItem {
                text: qsTr("Exit")
                onTriggered: Qt.quit();
            }
        }
    }

    Text {
        text: qsTr("Hello World")
        anchors.centerIn: parent
    }


    Rectangle
    {
        id: login_gui

        width: 320; height: 480

        SystemPalette { id: activePalette }



        //背景图片
        {
            id: background
            anchors { top: parent.top; bottom: parent.bottom }
            anchors.fill: parent
            source: "pics/pic1.png"
            fillMode: Image.PreserveAspectCrop
        }

        //顶烂
        Item
        {
            id: top_bar
            width: login_gui.width; height: login_gui.height * 0.05
            anchors.top: login_gui.top

            Text
            {
                id: title
                anchors { top: parent.top; horizontalCenter: parent.horizontalCenter }
                text: "登陆"
                font.bold: true
                font.pointSize: login_gui.height * 0.05 * 0.7
                color: "dark red"
            }
        }

        //空白栏
        Item
        {
            id: space1
            width: login_gui.width; height: login_gui.height * 0.1
            anchors.top: top_bar.bottom
        }

        //登陆框
        Rectangle
        {
            id: rect1
            width: login_gui.width * 0.8; height: login_gui.height * 0.3
            anchors { top: space1.bottom; horizontalCenter: parent.horizontalCenter }
            border.color: "#707070"
            color: "transparent"

            LineInput
            {
                width: rect1.width * 0.8; height: rect1.height * 0.2
                font_size:height * 0.7
                anchors {horizontalCenter: rect1.horizontalCenter; top: rect1.top; topMargin: 8}
                hint: "请输入用户号"
            }

            LineInput
            {
                width: rect1.width * 0.8; height: rect1.height * 0.2
                font_size:height * 0.7
                anchors {horizontalCenter: rect1.horizontalCenter; bottom: btn_login.top;  bottomMargin: rect1.height * 0.1}
                hint: "请输入密码"
            }

            Button
            {
                id: btn_login
                width: rect1.width * 0.35; height: rect1.height * 0.2
                anchors { left: rect1.left; leftMargin: 28; bottom: rect1.bottom; bottomMargin: 8 }
                text: "登陆"
                //onClicked: SameGame.startNewGame()
            }

            Button
            {
                id: btn_quit
                width: rect1.width * 0.35; height: rect1.height * 0.2
                anchors { right: rect1.right; rightMargin: 28; bottom: rect1.bottom; bottomMargin: 8 }
                text: "退出"
                //onClicked: SameGame.startNewGame()
            }
        }
    }
}

 技术分享图片
