Chisel3 - util - Pipe

/** A hardware module that delays data coming down the pipeline
* by the number of cycles set by the latency parameter. Functionality
* is similar to ShiftRegister but this exposes a Pipe interface.
*
* Example usage:
* {{{
* val pipe = new Pipe(UInt())
* pipe.io.enq <> produce.io.out
* consumer.io.in <> pipe.io.deq
* }}}
*/

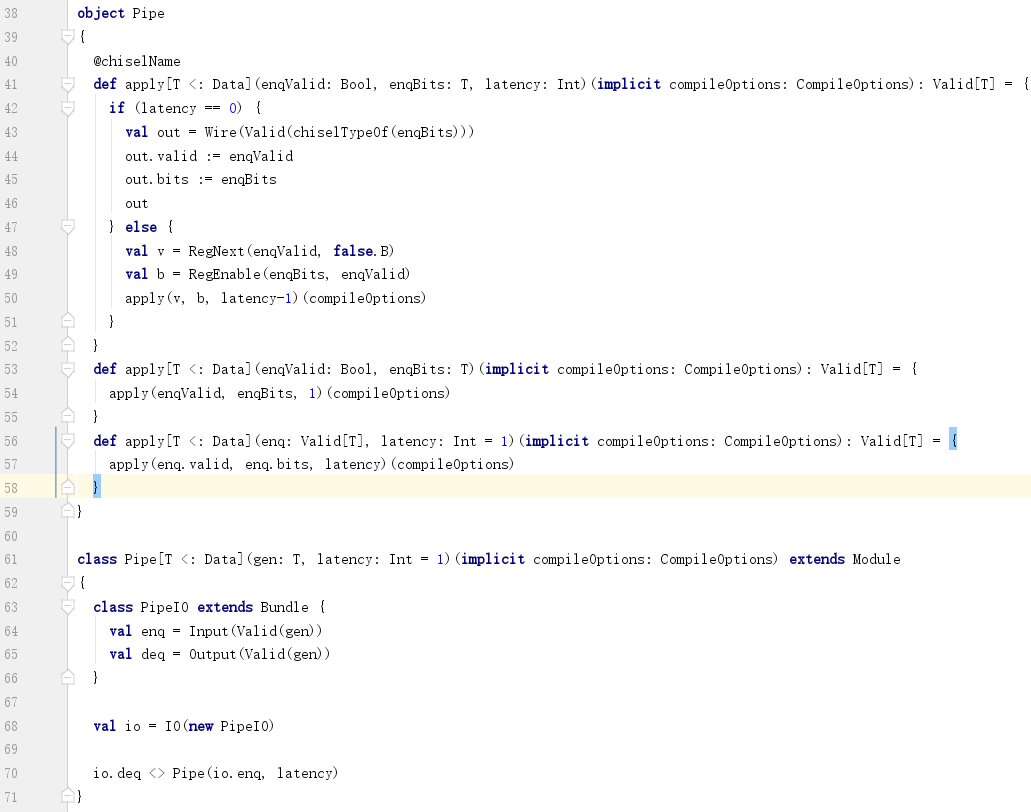

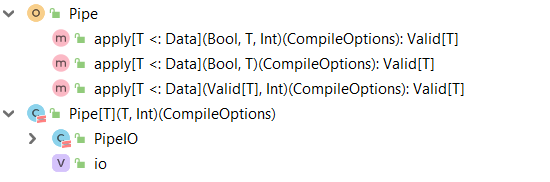

object Pipe
{
@chiselName
def apply[T <: Data](enqValid: Bool, enqBits: T, latency: Int)(implicit compileOptions: CompileOptions): Valid[T] = {
if (latency == 0) {
val out = Wire(Valid(chiselTypeOf(enqBits)))
out.valid := enqValid
out.bits := enqBits
out

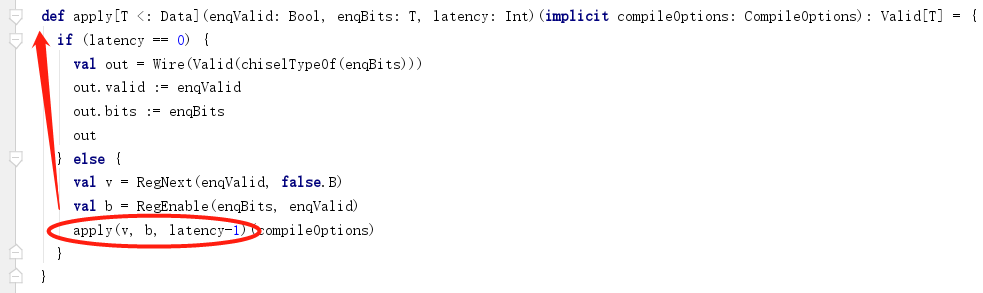

} else {
val v = RegNext(enqValid, false.B)
val b = RegEnable(enqBits, enqValid)
apply(v, b, latency-1)(compileOptions)
}
}
def apply[T <: Data](enqValid: Bool, enqBits: T)(implicit compileOptions: CompileOptions): Valid[T] = {
apply(enqValid, enqBits, 1)(compileOptions)
}
def apply[T <: Data](enq: Valid[T], latency: Int = 1)(implicit compileOptions: CompileOptions): Valid[T] = {
apply(enq.valid, enq.bits, latency)(compileOptions)
}
}

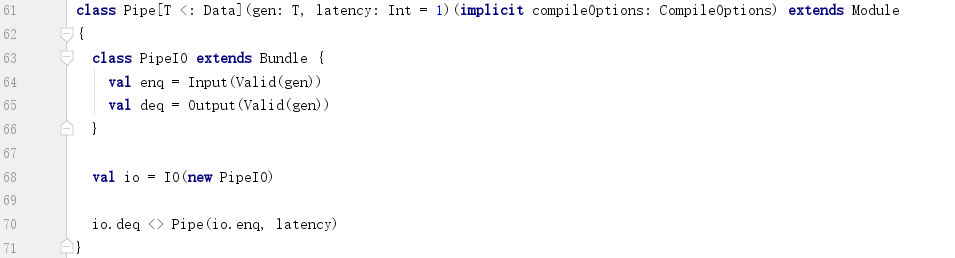

class Pipe[T <: Data](gen: T, latency: Int = 1)(implicit compileOptions: CompileOptions) extends Module
{
class PipeIO extends Bundle {
val enq = Input(Valid(gen))
val deq = Output(Valid(gen))
}

val io = IO(new PipeIO)

io.deq <> Pipe(io.enq, latency)
}
