Techies who work in the embedded domain must be familiar with the ARM (Advanced RISC Machine) architecture. In the modern era, our lives have been taken over by mobile devices like phones, PDAs, MP3 players and GPS devices that use this architecture. ARM has cemented its place in the embedded devices market because of its low cost, lower power requirements, less heat dissipation and good performance.

Purchasing ARM development hardware can be an expensive proposition. Thankfully, the QEMU developers have added the functionality of emulating the ARM processor to QEMU. You can use QEMU for two purposes in this arena — to run an ARM program, and to boot and run the ARM kernel.

In the first case, you can run and test ARM programs without installing ARM OS or its kernel. This feature is very helpful and time-saving. In the second case, you can try to boot the Linux kernel for ARM, and test it.

Compiling QEMU for ARM

In the last article, we compiled QEMU for x86. This time let’s compile it for ARM. Download the QEMU source, if you don’t have it already. Extract the tarball, change to the extracted directory, configure and build it as follows:

You will find two output binaries, qemu-arm and qemu-system-arm, in the source code directory. The first is used to execute ARM binary files, and the second to boot the ARM OS.

Obtaining an ARM tool-chain

Let’s develop a small test program. Just as you need the x86 tool-chain to develop programs for Intel, you need the ARM tool-chain for ARM program development. You can download it from here.
Extract the archive’s contents, and view a list of the available binaries:

Cross-compiling and running the test program for ARM

Now use the arm-none-linux-gnueabi-gcc tool to compile a test C program. Before proceeding, you should add the ARM tool-chain to your PATH:

Create a small test program, test.c, with the basic “Hello world”:

Use the ARM compiler to compile this program:

Once the file is compiled successfully, check the properties of the output file, showing that the output executable is built for ARM:

Run the test program:

While executing the program, you must link it to the ARM library. The option -L is used for this purpose.

Building the Linux kernel for ARM

So, you are now done with the ARM tool-chain and qemu-arm. The next step is to build the Linux kernel for ARM. The mainstream Linux kernel already contains supporting files and code for ARM; you need not patch it, as you used to do some years ago.

Download latest version of Linux from kernel.org (v2.6.37 as of this writing), and extract the tarball, enter the extracted directory, and configure the kernel for ARM:

Here, specify the architecture as ARM, and invoke the ARM tool-chain to build the kernel. In the configuration window, navigate to “Kernel Features”, and enable “Use the ARM EABI to compile the kernel”. (EABI is Embedded Application Binary Interface.) Without this option, the kernel won’t be able to load your test program.

Modified kernel for u-boot

In subsequent articles, we will be doing lots of testing on u-boot — and for that, we need a modified kernel. The kernel zImage files are not compatible with u-boot, so let’s use uImage instead, which is a kernel image with the header modified to support u-boot. Compile the kernel, while electing to build a uImage for u-boot. Once again, specify the architecture and use the ARM tool-chain:

After the compilation step, the uImage is ready. Check the file’s properties:

Now test this image on QEMU; the result is shown in Figure 1:

Figure 1: ARM kernel inside QEMU

The kernel will crash at the point where it searches for a root filesystem, which you didn’t specify in the above command.

The next task is to develop a dummy filesystem for your testing. It’s very simple — develop a small test C program hello.c, and use it to build a small dummy filesystem:

The endless loop (while(1)) will print a message when the user presses a key. Compile this program for ARM, but compile it statically; as you are trying to create a small dummy filesystem, you will not use any library in it. In GCC, the -static option does this for you:

Use the output file to create a root filesystem. The command cpio is used for this purpose. Execute the following command:

Check the output file:

You now have a dummy filesystem ready for testing with this command:

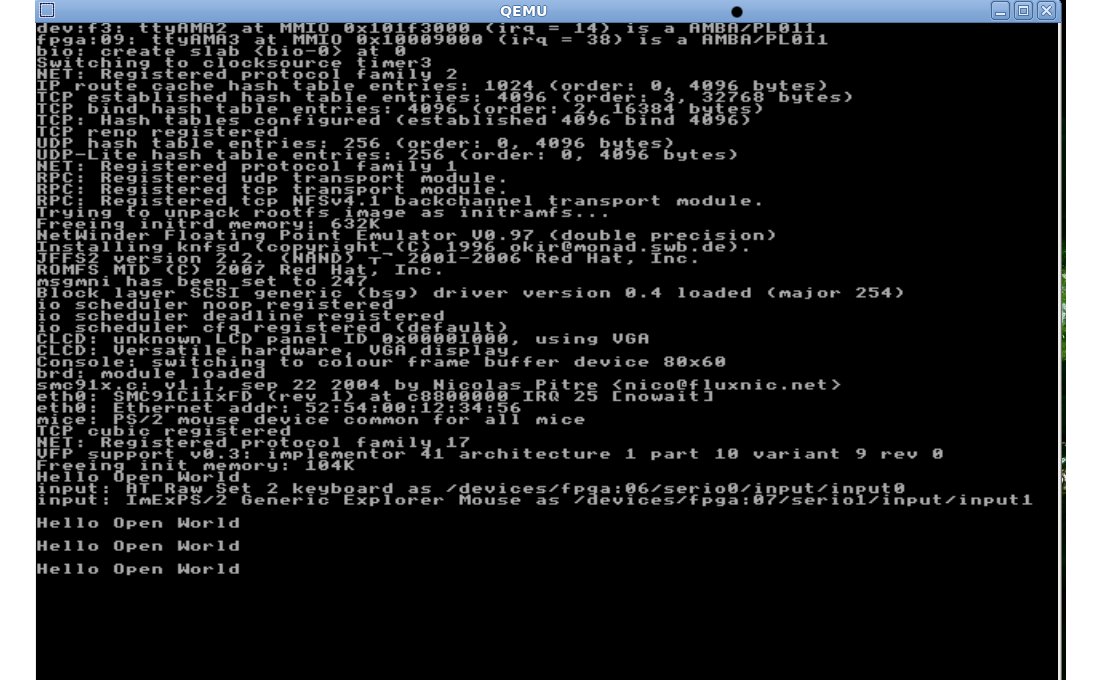

Figure 2: ARM kernel with a dummy filesystem

When the kernel boots, it mounts rootfs as its filesystem, and starts the hello program as init. So now you are able to run ARM programs, and boot the ARM kernel inside QEMU.

The next step would be to use u-boot on QEMU. An array of testing is ahead of us, which we will cover in a forthcoming article.

Related Posts:

• A Simple guide to building your own Linux Kernel
• Building an Embedded System Based on the Initial RAM Disk
• Learn the Art of Linux Troubleshooting
• Playing Hide and Seek with Passwords
• Jumpstart Linux Kernel Module Programming



2:

First of all, I would like to explain the need for a bootloader. The bootloader is code that is used to load the kernel into RAM, and then specify which partition will be mounted as the root filesystem. The bootloader resides in the MBR (Master Boot Record). In general-purpose computing machines, an important component is the BIOS (Basic Input Output System). The BIOS contains the low-level drivers for devices like the keyboard, mouse, display, etc. It initiates the bootloader, which then loads the kernel. Linux users are very familiar with boot-loaders like GRUB (Grand Unified Boot-Loader) and LILO (Linux Loader).

Micro-controller programmers are very familiar with the term “Bare-Metal Programming”. It means that there is nothing between your program and the processor — the code you write runs directly on the processor. It becomes the programmer’s responsibility to check each and every possible condition that can corrupt the system.

Now, let us build a small program for the ARM Versatile Platform Baseboard, which will run on the QEMU emulator, and then print a message on the serial console. Downloaded the tool-chain for ARM EABI from here. As described in the previous article, add this tool-chain in your PATH.

By default, QEMU redirects the serial console output to the terminal, when it is initialised with the nographic option:

We can make good use of this feature; let’s write some data to the serial port, and it can be a good working example.

Before going further, we must make sure which processor the GNU EABI tool-chain supports, and which processor QEMU can emulate. There should be a similar processor supported by both the tool-chain and the emulator. Let’s check first in QEMU. In the earlier articles, we compiled the QEMU source code, so use that source code to get the list of the supported ARM processors:

It’s very clear that the “arm926″ is supported by QEMU. Let’s check its availability in the GNU ARM tool-chain:

Great!! The ARM926EJ-S processor is supported by the GNU ARM tool-chain. Now, let’s write some data to the serial port of this processor. As we are not using any header file that describes the address of UART0, we must find it manually, from the file (your-path)/qemu/qemu-0.14.0/hw/versatilepb.c:

Open source code is so powerful, it gives you each and every detail. UART0 is present at address 0x101f1000. For testing purposes, we can write data directly to this address, and check output on the terminal.

Our first test program is a bare-metal program running directly on the processor, without the help of a bootloader. We have to create three important files. First of all, let us develop a small application program (init.c):

Let’s run through this code snippet.

First, we declared a volatile variable pointer, and assigned the address of the serial port (UART0). The function my_init(), is the main routine. It merely calls the function display(), which writes a string to the UART0.

Engineers familiar with base-level micro-controller programming will find this very easy. If you are not experienced in embedded systems programming, then you can stick to the basics of digital electronics. The microprocessor is an integrated chip, with input/output lines, different ports, etc. The ARM926EJ-S has four serial ports (information obtained from its data-sheet); and they have their data lines (the address). When the processor is programmed to write data to one of the serial ports, it writes data to these lines. That’s what this program does.

The next step is to develop the startup code for the processor. When a processor is powered on, it jumps to a specified location, reads code from that location, and executes it. Even in the case of a reset (like on a desktop machine), the processor jumps to a predefined location. Here’s the startup code, startup.s:

In the first line, _Start is declared as global. The next line is the beginning of _Start‘s code. We set the address of the stack to sp_top. (The instruction LDR will move the data value of sp_top in the stack pointer (sp). The instruction BL will instruct the processor to jump to my_init (previously defined in init.c). Then the processor will step into an infinite loop with the instruction B ., which is like a while(1) or for(;;) loop. If we don’t do this, our system will crash. The basics of embedded systems programming is that our code should run into an infinite loop.

Now, the final task is to write a linker script for these two files (linker.ld):

The first line tells the linker that the entry point is _Start (defined in startup.s). As this is a basic program, we can ignore the Interrupts section. The QEMU emulator, when executed with the -kernel option, starts execution from the address 0x10000, so we must place our code at this address. That’s what we have done in Line 4. The section “SECTIONS”, defines the different sections of a program.

In this, startup.o forms the text (code) part. Then comes the subsequent data and the bss part. The final step is to define the address of the stack pointer. The stack usually grows downward, so it’s better to give it a safe address. We have a very small code snippet, and can place the stack at 0x500 ahead of the current position. The variable sp_top will store the address for the stack.

We are now done with the coding part. Let’s compile and link these files. Assemble the startup.s file with:

Compile init.c:

Link the object files into an ELF file:

Finally, create a binary file from the ELF file:

The above instructions are easy to understand. All the tools used are part of the ARM tool-chain. Check their help/man pages for details.

After all these steps, finally we will run our program on the QEMU emulator:

The above command has been explained in previous articles (1, 2), so we won’t go into the details. The binary file is executed on QEMU and will write the message “Hello Open World” to UART0 of the ARM926EJ-S, which QEMU redirects as output in the terminal.

Acknowledgement

This article is inspired by the following blog post: “Hello world for bare metal ARM using QEMU“.

Related Posts:

• Understanding SDT Markers and Debugging with Subtlety
• Virtualisation Face-off: Qemu, VirtualBox, VMware Player and
• Building an Embedded System Based on the Initial RAM Disk
• Graphics Programming in Linux
• Heterogeneous Parallel Programming: Dive into the World of…

3:

In embedded systems, especially in mobile devices, ARM processor-based devices are leading the market. For ARM, U-Boot is the best choice for a bootloader. The good thing about it is that we can use it for different architectures like PPC, MIPS, x86, etc. So let’s get started.

Download and compile U-Boot

U-Boot is released under a GPL licence. Download it from this FTP server, which has every version of U-Boot available. For this article, I got version 1.2.0 (u-boot-1.2.0.tar.bz2). Extract the downloaded tar ball and enter the source code directory:

To begin, we must configure U-Boot for a particular board. We will use the same ARM Versatile Platform Baseboard (versatilepb) we used in the previous article, so let’s run:

After configuration is done, compile the source code:

Find the size of the compiled U-Boot binary file (around 72 KB in my experience) with ls -lh u-boot* — we will use it later in this article. I assume that you have set up QEMU, networking and the ARM tool chain, as explained in previous articles in this series (1, 2, 3). If not, then I suggest you read the last three articles.

Boot U-Boot in QEMU

Now we can boot the U-Boot binary in QEMU, which is simple. Instead of specifying the Linux kernel as the file to boot in QEMU, use the U-Boot binary:

Run some commands in U-Boot, to check if it is working:

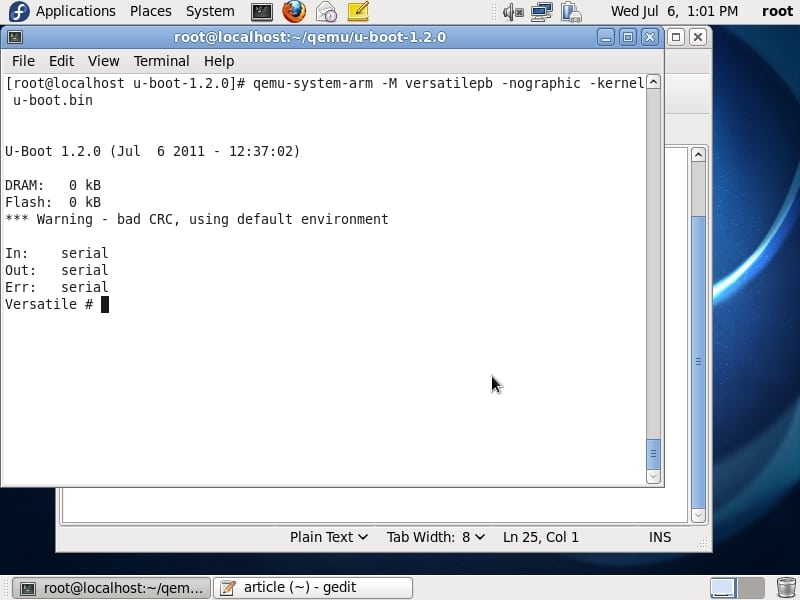

Figure 1: U-Boot

The next step is to boot a small program from U-Boot. In the previous article, we wrote a small bare-metal program — so let us use that.

We will create a flash binary image that includes u-boot.bin and the bare-metal program in it. The test program from the last article will be used here again with some modification. As the u-boot.bin size is around 72 KB, we will move our sample program upward in memory. In the linker script, change the starting address of the program:

Compile the test program as shown below:

Now, our test program’s binary file and the u-boot.bin must be packed in a single file. Let’s use the mkimage tool for this; locate it in the U-Boot source-code directory.

Our sample binary file is ready. Let’s combine it with u-boot.bin to create the final flash image file:

Calculate the starting address of the test program in the flash.bin file:

Boot the flash image in QEMU:

Now verify the image address in U-Boot:

The image is present at the address 0x21C68. Boot it by executing the bootm command:

That’s all folks!

Acknowledgement

This article is inspired by the following blog post: “U-boot for ARM on QEMU“.
